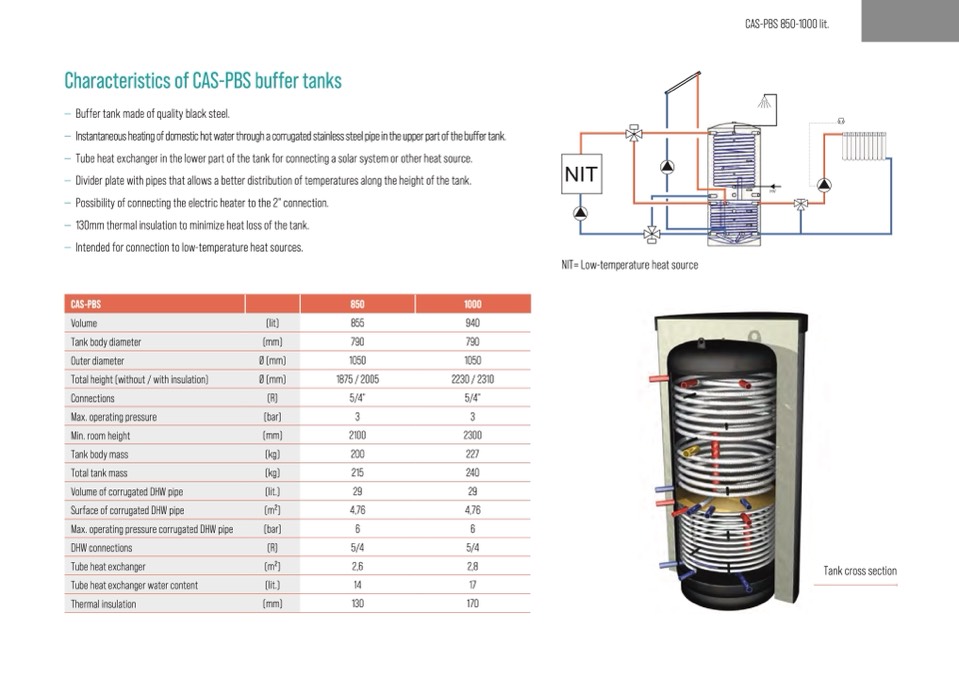

Characteristics of CAS-PBS buffer tanks
— Buffer tank made of quality black steel.
— Instantaneousheatingofdomestichotwaterthroughacorrugatedstainlesssteelpipeintheupperpartofthebuffertank.
— Tube heat exchanger in the lower part of the tank for connecting a solar system or other heat source.
— Divider plate with pipes that allows a better distribution of temperatures along the height of the tank.
— Possibility of connecting the electric heater to the 2" connection.
— 130mm thermal insulation to minimize heat loss of the tank.
— Intended for connection to low-temperature heat sources.
CAS-PBS 850-1000 lit.
855
790
1050
1875 / 2005
5/4"
940
790
1050
2230 / 2310
5/4"
NIT= Low-temperature heat source
CAS-PBS
Volume
(lit)
850
1000
Tank body diameter
(mm)
Outer diameter
Ø (mm)
Total height (without / with insulation)
Ø (mm)
Connections
(R)
Max. operating pressure
(bar)
Min. room height
(mm)
Tank body mass
Max. operating pressure corrugated DHW pipe
(kg)
Total tank mass
(kg)
Volume of corrugated DHW pipe
Surface of corrugated DHW pipe
(lit.)
(m2)
(bar)
DHW connections
(R)
Tube heat exchanger
(m2)
Tube heat exchanger water content
(lit.)
Thermal insulation
(mm)
3
3
2100
2300
200
227
215
240
29
29
4,76
4,76
6
6
5/4
5/4
2,6
2,8
14
17
130
170
Tank cross section
