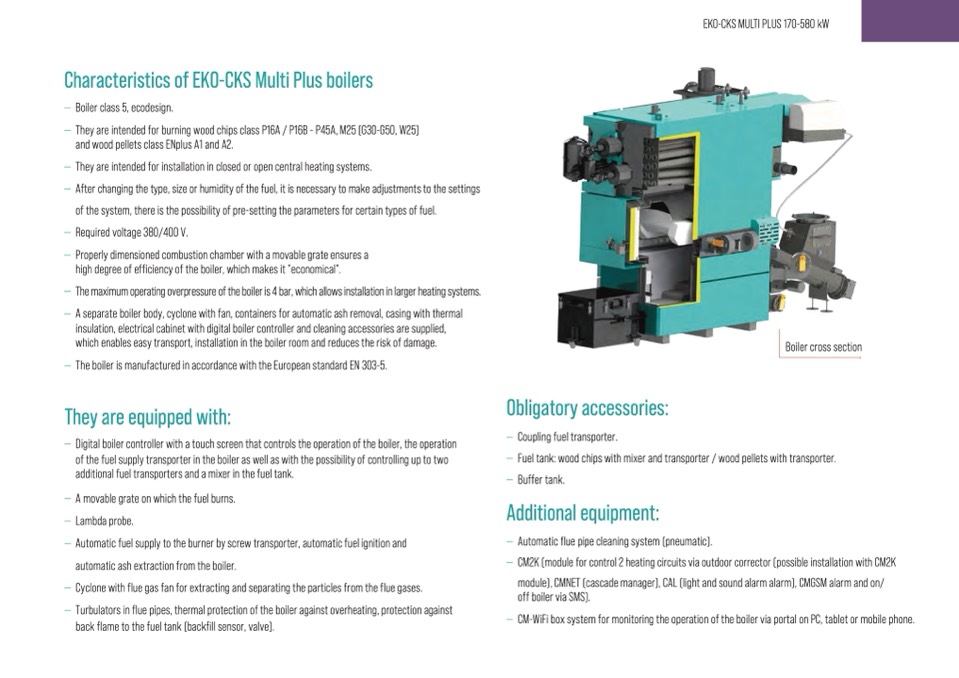

Characteristics of EKO-CKS Multi Plus boilers

— Boiler class 5, ecodesign.

— They are intended for burning wood chips class P16A / P16B - P45A, M25 (G30-G50, W25)

and wood pellets class ENplus A1 and A2.

— They are intended for installation in closed or open central heating systems.

— After changing the type, size or humidity of the fuel, it is necessary to make adjustments to the settings

of the system, there is the possibility of pre-setting the parameters for certain types of fuel.

— Required voltage 380/400 V.

— Properly dimensioned combustion chamber with a movable grate ensures a

high degree of efficiency of the boiler, which makes it "economical".

— Themaximumoperatingoverpressureoftheboileris4bar,whichallowsinstallationinlargerheatingsystems.

— A separate boiler body, cyclone with fan, containers for automatic ash removal, casing with thermal

insulation, electrical cabinet with digital boiler controller and cleaning accessories are supplied,

which enables easy transport, installation in the boiler room and reduces the risk of damage.

— The boiler is manufactured in accordance with the European standard EN 303-5.

They are equipped with:

— Digital boiler controller with a touch screen that controls the operation of the boiler, the operation

of the fuel supply transporter in the boiler as well as with the possibility of controlling up to two

additional fuel transporters and a mixer in the fuel tank.

— A movable grate on which the fuel burns.

— Lambda probe.

— Automatic fuel supply to the burner by screw transporter, automatic fuel ignition and

automatic ash extraction from the boiler.

— Cyclone with flue gas fan for extracting and separating the particles from the flue gases.

— Turbulators in flue pipes, thermal protection of the boiler against overheating, protection against

back flame to the fuel tank (backfill sensor, valve).

Boiler cross section

EKO-CKS MULTI PLUS 170-580 kW

Obligatory accessories:

— Coupling fuel transporter.

— Fuel tank: wood chips with mixer and transporter / wood pellets with transporter.

— Buffer tank.

Additional equipment:

— Automatic flue pipe cleaning system (pneumatic).

— CM2K (module for control 2 heating circuits via outdoor corrector (possible installation with CM2K

module), CMNET (cascade manager), CAL (light and sound alarm alarm), CMGSM alarm and on/

off boiler via SMS).

— CM-WiFi box system for monitoring the operation of the boiler via portal on PC, tablet or mobile phone.
