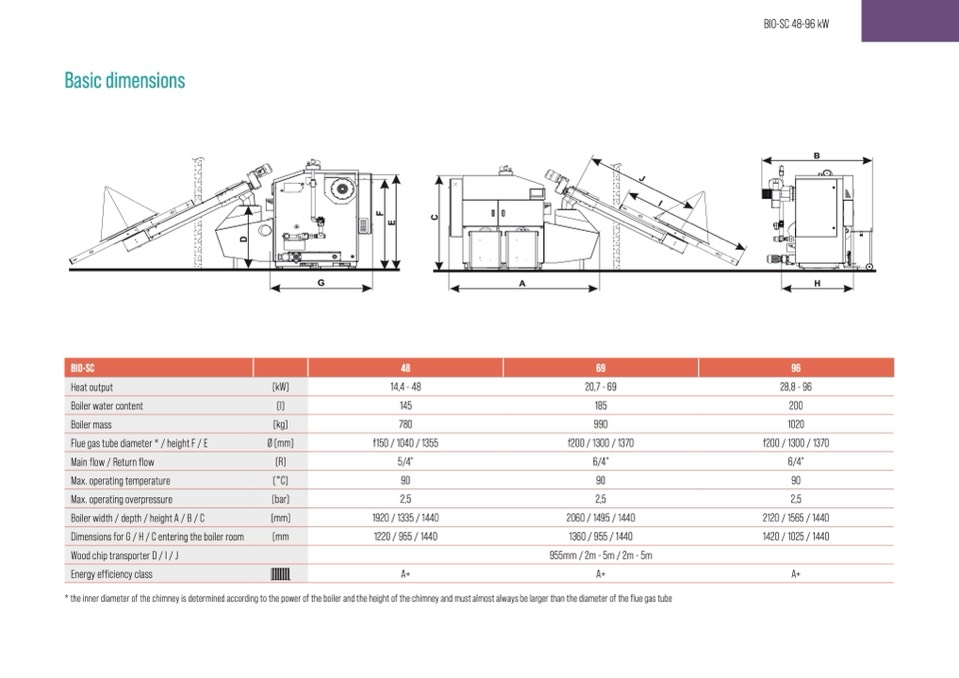

Basic dimensions

G

A

H

BIO-SC

Heat output

Boiler water content

Boiler mass

Fluegastubediameter*/heightF/E

Ø(mm)

f150/1040/1355

f200/1300/1370

f200/1300/1370

(kW)

14,4 - 48

(l)

145

(kg)

780

20,7 - 69

185

990

28,8 - 96

200

1020

(R)

5/4"

(°C)

90

(bar)

2,5

6/4"

6/4"

90

90

2,5

2,5

48

69

96

Main flow / Return flow

Max. operating temperature

Max. operating overpressure

Boilerwidth/depth/heightA/B/C

(mm)

1920/1335/1440

2060/1495/1440

2120/1565/1440

Dimensions for G / H / C entering the boiler room

(mm

1220 / 955 / 1440

1360 / 955 / 1440

1420 / 1025 / 1440

WoodchiptransporterD/I/J

955mm/2m-5m/2m-5m

Energy efficiency class

A+

A+

A+

* the inner diameter of the chimney is determined according to the power of the boiler and the height of the chimney and must almost always be larger than the diameter of the flue gas tube

BIO-SC 48-96 kW

B

D

F

E

C
