Recommended min. - max.

room storage dimensions

AxB=4x8m

EQUIPMENT FOR PELLET SYSTEMS

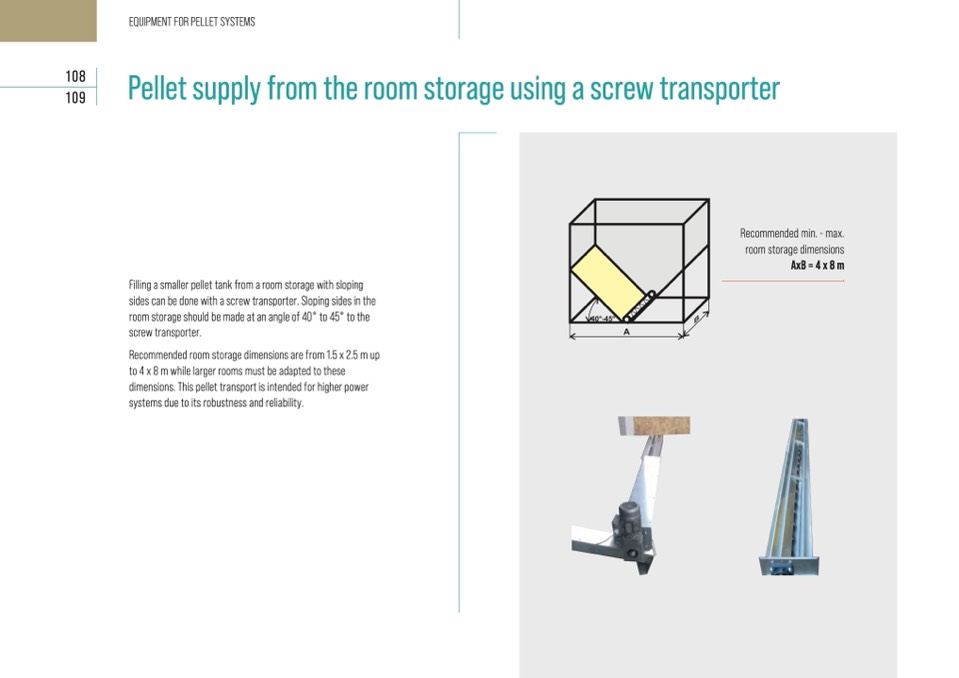

Pellet supply from the room storage using a screw transporter

Filling a smaller pellet tank from a room storage with sloping

sides can be done with a screw transporter. Sloping sides in the

room storage should be made at an angle of 40° to 45° to the

screw transporter.

Recommended room storage dimensions are from 1.5 x 2.5 m up

to 4 x 8 m while larger rooms must be adapted to these

dimensions. This pellet transport is intended for higher power

systems due to its robustness and reliability.
