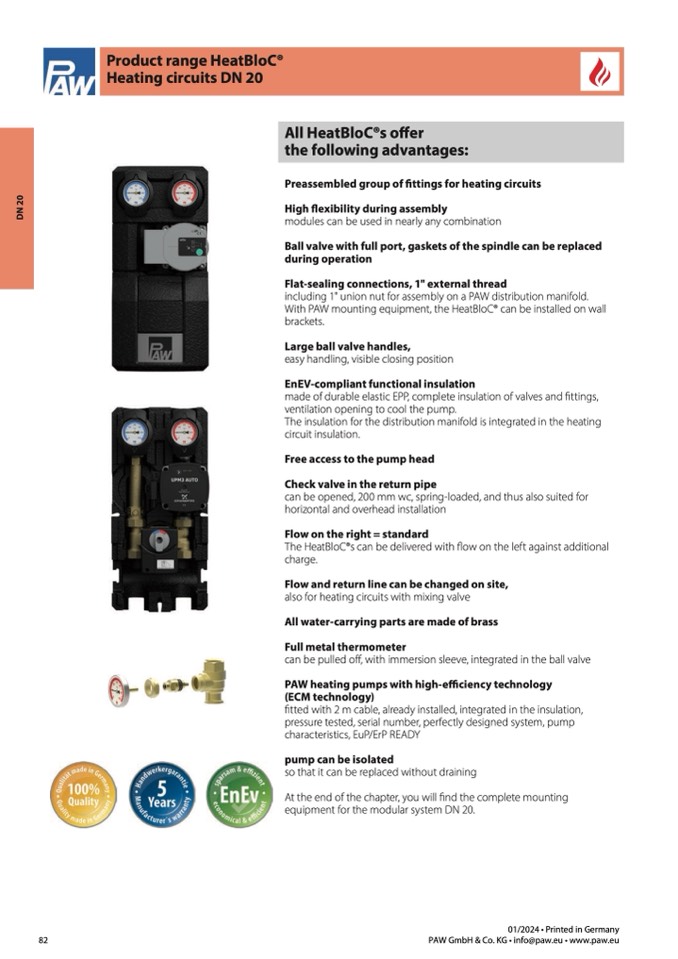

Product range HeatBloC®

Heating circuits DN 20

All HeatBloC®s offer

the following advantages:

D

N

2

0

82

Preassembled group of fittings for heating circuits

High

flexibility during assembly

modules can be used in nearly any combination

Ball valve with full port, gaskets of the spindle can be replaced

during operation

Flat-sealing connections, 1" external thread

including 1" union nut for assembly on a PAW distribution manifold.

With PAW mounting equipment, the HeatBloC® can be installed on wall

brackets.

Large ball valve handles,

easy handling, visible closing position

EnEV-compliant functional insulation

made of durable elastic EPP, complete insulation of valves and

fittings,

ventilation opening to cool the pump.

The insulation for the distribution manifold is integrated in the heating

circuit insulation.

Free access to the pump head

Check valve in the return pipe

can be opened, 200 mm wc, spring-loaded, and thus also suited for

horizontal and overhead installation

Flow on the right = standard

The HeatBloC®s can be delivered with

flow on the left against additional

charge.

Flow and return line can be changed on site,

also for heating circuits with mixing valve

All water-carrying parts are made of brass

Full metal thermometer

can be pulled off, with immersion sleeve, integrated in the ball valve

PAW heating pumps with high-e

fficiency technology

(ECM technology)

fitted with 2 m cable, already installed, integrated in the insulation,

pressure tested, serial number, perfectly designed system, pump

characteristics, EuP/ErP READY

pump can be isolated

so that it can be replaced without draining

At the end of the chapter, you will find the complete mounting

equipment for the modular system DN 20.
