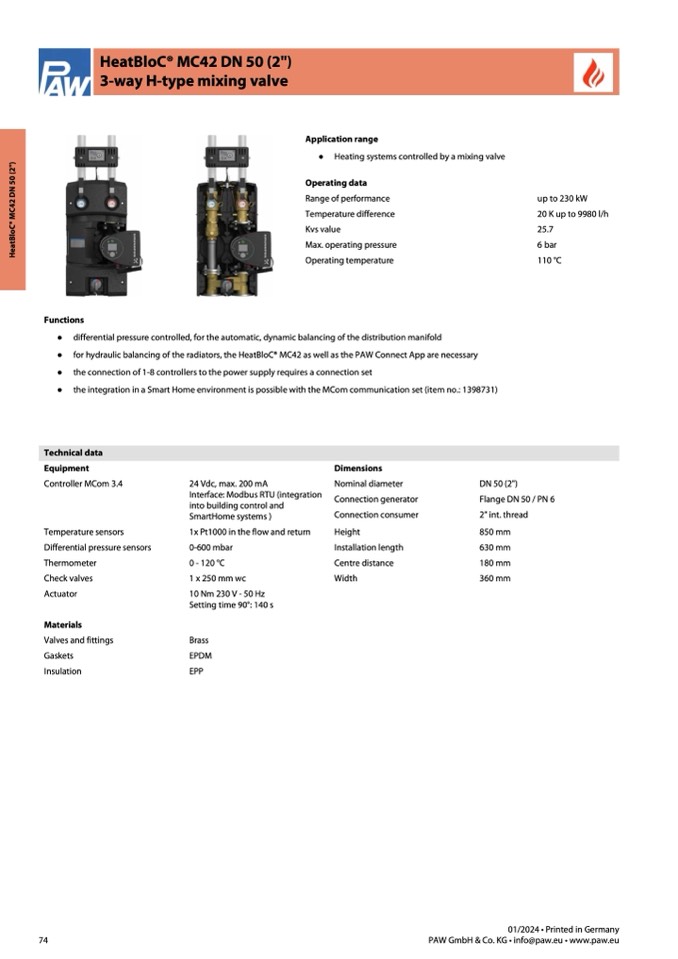

HeatBloC® MC42 DN 50 (2")

3-way H-type mixing valve

H

e

a

t

B

l

o

C

®

M

C

4

2

D

N

5

0

(

2

"

)

Technical data

Application range

● Heating systems controlled by a mixing valve

Operating data

Range of performance

up to 230 kW

Temperature difference

20 K up to 9980 l/h

Kvs value

25.7

Max. operating pressure

6 bar

Operating temperature

110 °C

74

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Functions

● differential pressure controlled, for the automatic, dynamic balancing of the distribution manifold

● for hydraulic balancing of the radiators, the HeatBloC® MC42 as well as the PAW Connect App are necessary

● the connection of 1-8 controllers to the power supply requires a connection set

● the integration in a Smart Home environment is possible with the MCom communication set (item no.: 1398731)

Equipment

Controller MCom 3.4

Temperature sensors

Differential pressure sensors

Thermometer

Check valves

Actuator

Materials

Valves and fittings

Gaskets

Insulation

24 Vdc, max. 200 mA

Interface: Modbus RTU (integration

into building control and

SmartHome systems )

1x Pt1000 in the flow and return

0-600 mbar

0 - 120 °C

1 x 250 mm wc

10 Nm 230 V - 50 Hz

Setting time 90°: 140 s

Brass

EPDM

EPP

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

DN 50 (2")

Flange DN 50 / PN 6

2" int. thread

850 mm

630 mm

180 mm

360 mm
