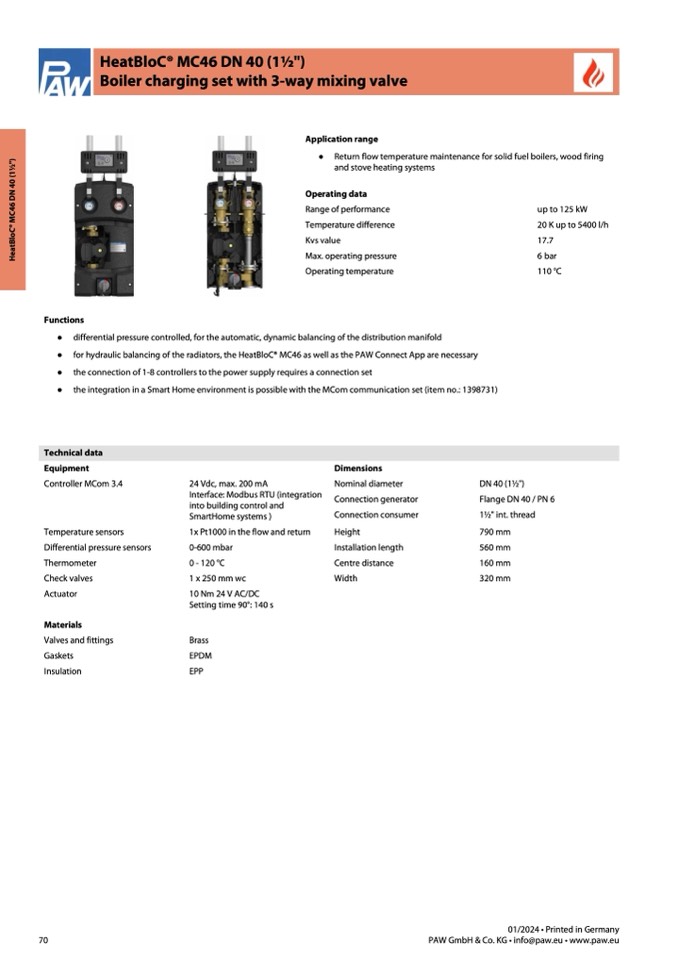

HeatBloC® MC46 DN 40 (1

1⁄2")

Boiler charging set with 3-way mixing valve

H

e

a

t

B

l

o

C

®

M

C

4

6

D

N

4

0

(

1

1⁄

2

"

)

Technical data

Application range

● Return flow temperature maintenance for solid fuel boilers, wood firing

and stove heating systems

Operating data

Range of performance

up to 125 kW

Temperature difference

20 K up to 5400 l/h

Kvs value

17.7

Max. operating pressure

6 bar

Operating temperature

110 °C

70

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Functions

● differential pressure controlled, for the automatic, dynamic balancing of the distribution manifold

● for hydraulic balancing of the radiators, the HeatBloC® MC46 as well as the PAW Connect App are necessary

● the connection of 1-8 controllers to the power supply requires a connection set

● the integration in a Smart Home environment is possible with the MCom communication set (item no.: 1398731)

Equipment

Controller MCom 3.4

Temperature sensors

Differential pressure sensors

Thermometer

Check valves

Actuator

Materials

Valves and fittings

Gaskets

Insulation

24 Vdc, max. 200 mA

Interface: Modbus RTU (integration

into building control and

SmartHome systems )

1x Pt1000 in the flow and return

0-600 mbar

0 - 120 °C

1 x 250 mm wc

10 Nm 24 V AC/DC

Setting time 90°: 140 s

Brass

EPDM

EPP

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

DN 40 (1

1⁄2")

Flange DN 40 / PN 6

11⁄2" int. thread

790 mm

560 mm

160 mm

320 mm
