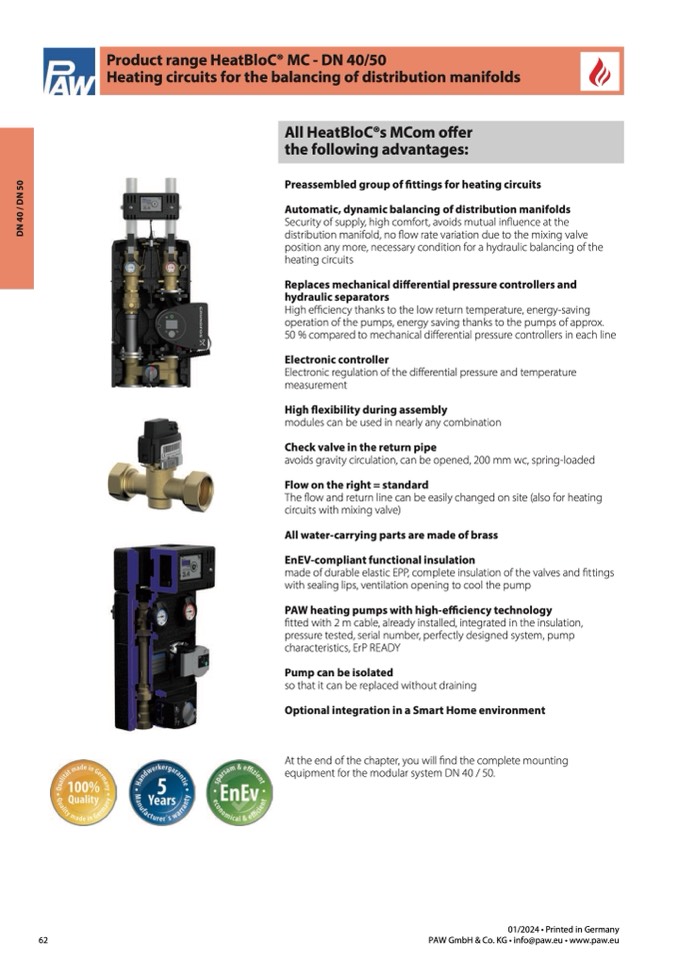

Product range HeatBloC® MC - DN 40/50

Heating circuits for the balancing of distribution manifolds

All HeatBloC®s MCom o

ffer

the following advantages:

D

N

4

0

/

D

N

5

0

Preassembled group of fittings for heating circuits

Automatic, dynamic balancing of distribution manifolds

Security of supply, high comfort, avoids mutual influence at the

distribution manifold, no flow rate variation due to the mixing valve

position any more, necessary condition for a hydraulic balancing of the

heating circuits

Replaces mechanical di

fferential pressure controllers and

hydraulic separators

High efficiency thanks to the low return temperature, energy-saving

operation of the pumps, energy saving thanks to the pumps of approx.

50 % compared to mechanical di

fferential pressure controllers in each line

Electronic controller

Electronic regulation of the differential pressure and temperature

measurement

High

flexibility during assembly

modules can be used in nearly any combination

Check valve in the return pipe

avoids gravity circulation, can be opened, 200 mm wc, spring-loaded

Flow on the right = standard

The

flow and return line can be easily changed on site (also for heating

circuits with mixing valve)

All water-carrying parts are made of brass

EnEV-compliant functional insulation

made of durable elastic EPP, complete insulation of the valves and fittings

with sealing lips, ventilation opening to cool the pump

PAW heating pumps with high-e

fficiency technology

fitted with 2 m cable, already installed, integrated in the insulation,

pressure tested, serial number, perfectly designed system, pump

characteristics, ErP READY

Pump can be isolated

so that it can be replaced without draining

Optional integration in a Smart Home environment

At the end of the chapter, you will find the complete mounting

equipment for the modular system DN 40 / 50.
