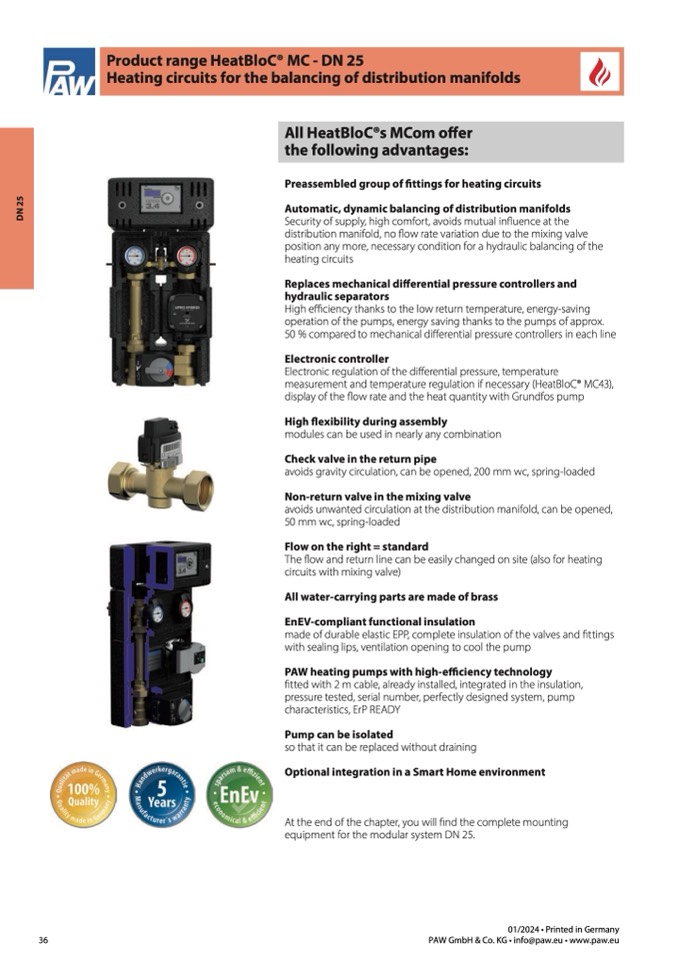

Product range HeatBloC® MC - DN 25
Heating circuits for the balancing of distribution manifolds
All HeatBloC®s MCom o
ffer
the following advantages:
D
N
2
5
36
Preassembled group of fittings for heating circuits
Automatic, dynamic balancing of distribution manifolds
Security of supply, high comfort, avoids mutual influence at the
distribution manifold, no flow rate variation due to the mixing valve
position any more, necessary condition for a hydraulic balancing of the
heating circuits
Replaces mechanical di
fferential pressure controllers and
hydraulic separators
High efficiency thanks to the low return temperature, energy-saving
operation of the pumps, energy saving thanks to the pumps of approx.
50 % compared to mechanical di
fferential pressure controllers in each line
Electronic controller
Electronic regulation of the differential pressure, temperature
measurement and temperature regulation if necessary (HeatBloC® MC43),
display of the
flow rate and the heat quantity with Grundfos pump
High
flexibility during assembly
modules can be used in nearly any combination
Check valve in the return pipe
avoids gravity circulation, can be opened, 200 mm wc, spring-loaded
Non-return valve in the mixing valve
avoids unwanted circulation at the distribution manifold, can be opened,
50 mm wc, spring-loaded
Flow on the right = standard
The
flow and return line can be easily changed on site (also for heating
circuits with mixing valve)
All water-carrying parts are made of brass
EnEV-compliant functional insulation
made of durable elastic EPP, complete insulation of the valves and fittings
with sealing lips, ventilation opening to cool the pump
PAW heating pumps with high-e
fficiency technology
fitted with 2 m cable, already installed, integrated in the insulation,
pressure tested, serial number, perfectly designed system, pump
characteristics, ErP READY
Pump can be isolated
so that it can be replaced without draining
Optional integration in a Smart Home environment
At the end of the chapter, you will find the complete mounting
equipment for the modular system DN 25.
