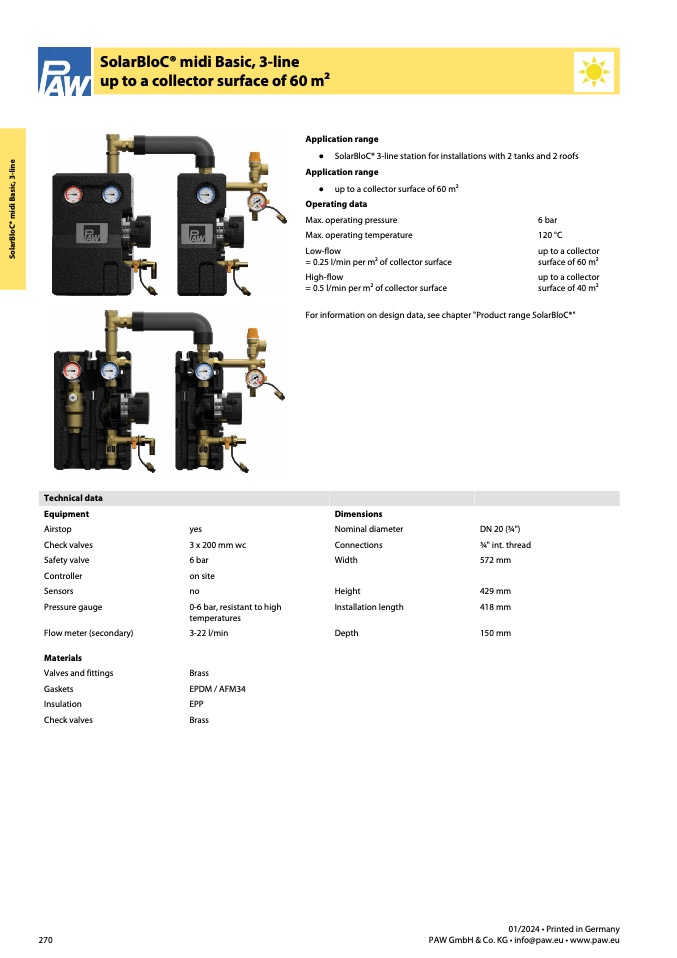

SolarBloC® midi Basic, 3-line

up to a collector surface of 60 m2

S

o

l

a

r

B

l

o

C

®

m

i

d

i

B

a

s

i

c

,

3

-

l

i

n

e

Technical data

Application range

● SolarBloC® 3-line station for installations with 2 tanks and 2 roofs

Application range

● up to a collector surface of 60 m2

Operating data

Max. operating pressure

Max. operating temperature

Low-flow

= 0.25 l/min per m2 of collector surface

High-flow

= 0.5 l/min per m2 of collector surface

6 bar

120 °C

up to a collector

surface of 60 m2

up to a collector

surface of 40 m2

For information on design data, see chapter "Product range SolarBloC®"

Equipment

Airstop

Check valves

Safety valve

Controller

Sensors

Pressure gauge

Flow meter (secondary)

Materials

Valves and fittings

Gaskets

Insulation

Check valves

yes

3 x 200 mm wc

6 bar

on site

no

0-6 bar, resistant to high

temperatures

3-22 l/min

Brass

EPDM / AFM34

EPP

Brass

Dimensions

Nominal diameter

Connections

Width

Height

Installation length

Depth

DN 20 (3⁄4")

3⁄4" int. thread

572 mm

429 mm

418 mm

150 mm

270
