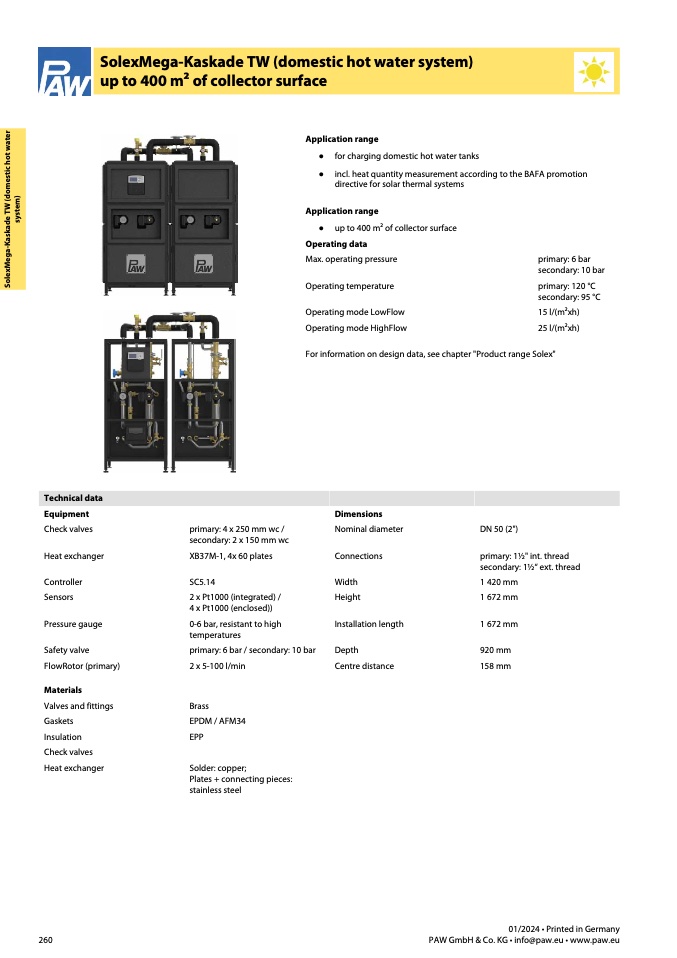

SolexMega-Kaskade TW (domestic hot water system)

up to 400 m2 of collector surface

S

o

l

e

x

M

e

g

a

-

K

a

s

k

a

d

e

T

W

(

d

o

m

e

s

t

i

c

h

o

t

w

a

t

e

r

s

y

s

t

e

m

)

Technical data

Equipment

Check valves

Heat exchanger

Controller

Sensors

Pressure gauge

Safety valve

FlowRotor (primary)

Materials

Valves and fittings

Gaskets

Insulation

Check valves

Heat exchanger

primary: 4 x 250 mm wc /

secondary: 2 x 150 mm wc

XB37M-1, 4x 60 plates

SC5.14

2 x Pt1000 (integrated) /

4 x Pt1000 (enclosed))

0-6 bar, resistant to high

temperatures

primary: 6 bar / secondary: 10 bar

2 x 5-100 l/min

Brass

EPDM / AFM34

EPP

Solder: copper;

Plates + connecting pieces:

stainless steel

Dimensions

Nominal diameter

Connections

Width

Height

Installation length

Depth

Centre distance

DN 50 (2")

primary: 11⁄2" int. thread

secondary: 11⁄2“ ext. thread

1 420 mm

1 672 mm

1 672 mm

920 mm

158 mm

260

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Application range

● for charging domestic hot water tanks

● incl. heat quantity measurement according to the BAFA promotion

directive for solar thermal systems

Application range

● up to 400 m2 of collector surface

Operating data

Max. operating pressure

Operating temperature

Operating mode LowFlow

Operating mode HighFlow

primary: 6 bar

secondary: 10 bar

primary: 120 °C

secondary: 95 °C

15 l/(m2xh)

25 l/(m2xh)

For information on design data, see chapter "Product range Solex"
