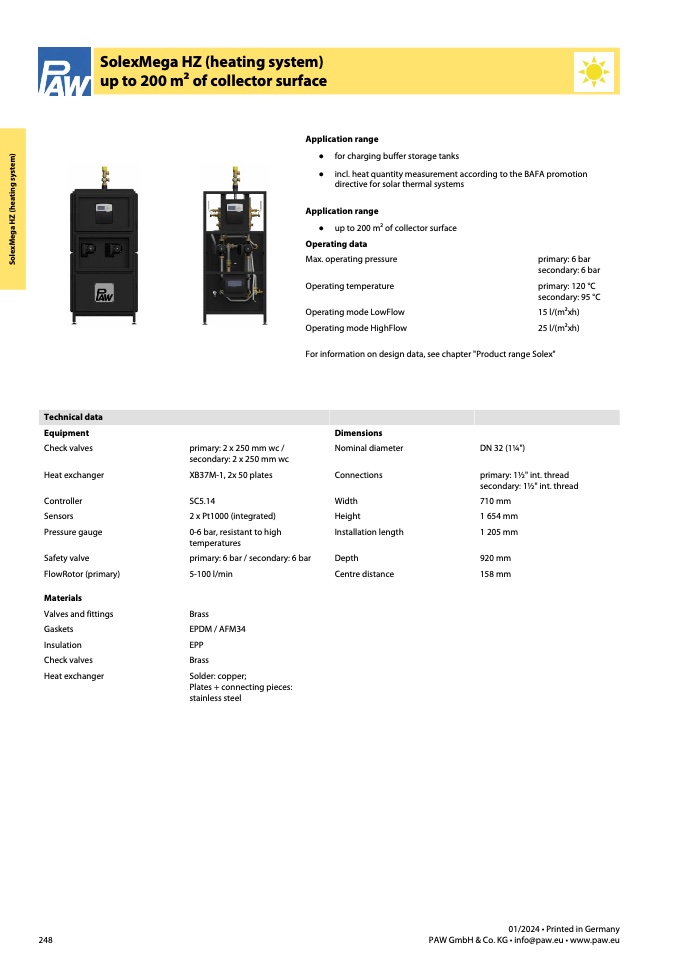

SolexMega HZ (heating system)

up to 200 m2 of collector surface

S

o

l

e

x

M

e

g

a

H

Z

(

h

e

a

t

i

n

g

s

y

s

t

e

m

)

Technical data

Application range

● for charging buffer storage tanks

● incl. heat quantity measurement according to the BAFA promotion

Equipment

Check valves

Heat exchanger

Controller

Sensors

Pressure gauge

Safety valve

FlowRotor (primary)

Materials

Valves and fittings

Gaskets

Insulation

Check valves

Heat exchanger

For information on design data, see chapter "Product range Solex"

Dimensions

Nominal diameter

Connections

Width

Height

Installation length

Depth

Centre distance

248

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

primary: 2 x 250 mm wc /

secondary: 2 x 250 mm wc

XB37M-1, 2x 50 plates

SC5.14

2 x Pt1000 (integrated)

0-6 bar, resistant to high

temperatures

primary: 6 bar / secondary: 6 bar

5-100 l/min

Brass

EPDM / AFM34

EPP

Brass

Solder: copper;

Plates + connecting pieces:

stainless steel

DN 32 (1

1⁄4")

primary: 11⁄2" int. thread

secondary: 11⁄2" int. thread

710 mm

1 654 mm

1 205 mm

920 mm

158 mm

directive for solar thermal systems

Application range

● up to 200 m2 of collector surface

Operating data

Max. operating pressure

Operating temperature

Operating mode LowFlow

Operating mode HighFlow

primary: 6 bar

secondary: 6 bar

primary: 120 °C

secondary: 95 °C

15 l/(m2xh)

25 l/(m2xh)
