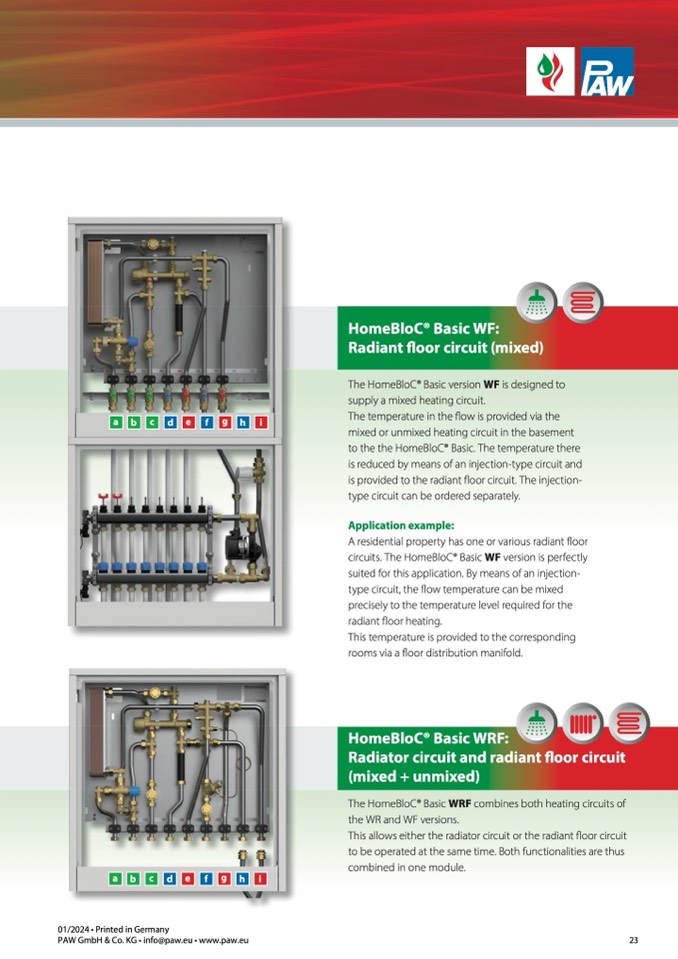

HomeBloC® Basic WF:

Radiant

floor circuit (mixed)

The HomeBloC® Basic version WF is designed to

supply a mixed heating circuit.

The temperature in the

flow is provided via the

mixed or unmixed heating circuit in the basement

to the the HomeBloC® Basic. The temperature there

is reduced by means of an injection-type circuit and

is provided to the radiant

floor circuit. The injection-

type circuit can be ordered separately.

Application example:

A residential property has one or various radiant

floor

circuits. The HomeBloC® Basic WF version is perfectly

a

b

c

d

e

f

g

h

i

suited for this application. By means of an injection-

type circuit, the

flow temperature can be mixed

precisely to the temperature level required for the

radiant

floor heating.

This temperature is provided to the corresponding

rooms via a

floor distribution manifold.

HomeBloC® Basic WRF:

Radiator circuit and radiant floor circuit

(mixed + unmixed)

a

b

c

d

e

f

g

h

i
