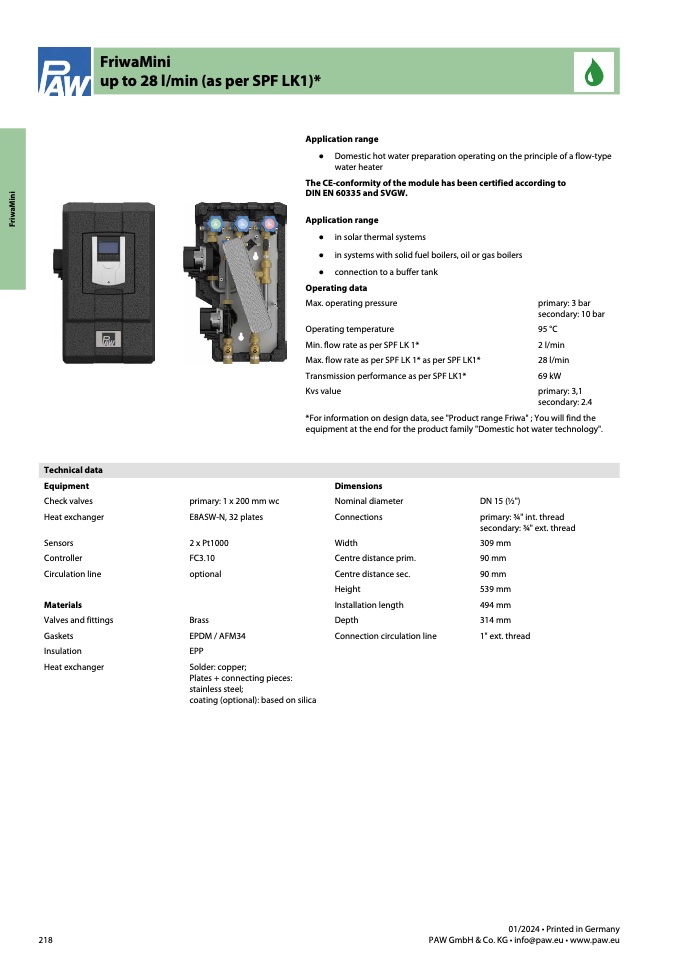

FriwaMini

up to 28 l/min (as per SPF LK1)*

F

r

i

w

a

M

i

n

i

Technical data

Application range

● Domestic hot water preparation operating on the principle of a flow-type

water heater

The CE-conformity of the module has been certified according to

DIN EN 60335 and SVGW.

Equipment

Check valves

Heat exchanger

Sensors

Controller

Circulation line

Materials

Valves and fittings

Gaskets

Insulation

Heat exchanger

*For information on design data, see "Product range Friwa" ; You will find the

equipment at the end for the product family "Domestic hot water technology".

Dimensions

Nominal diameter

Connections

Width

Centre distance prim.

Centre distance sec.

Height

Installation length

Depth

Connection circulation line

218

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

primary: 1 x 200 mm wc

E8ASW-N, 32 plates

2 x Pt1000

FC3.10

optional

Brass

EPDM / AFM34

EPP

Solder: copper;

Plates + connecting pieces:

stainless steel;

coating (optional): based on silica

DN 15 (1⁄2")

primary: 3⁄4" int. thread

secondary: 3⁄4" ext. thread

309 mm

90 mm

90 mm

539 mm

494 mm

314 mm

1" ext. thread

Application range

● in solar thermal systems

● in systems with solid fuel boilers, oil or gas boilers

● connection to a buffer tank

Operating data

Max. operating pressure

Operating temperature

Min. flow rate as per SPF LK 1*

Max. flow rate as per SPF LK 1* as per SPF LK1*

Transmission performance as per SPF LK1*

Kvs value

primary: 3 bar

secondary: 10 bar

95 °C

2 l/min

28 l/min

69 kW

primary: 3,1

secondary: 2.4
