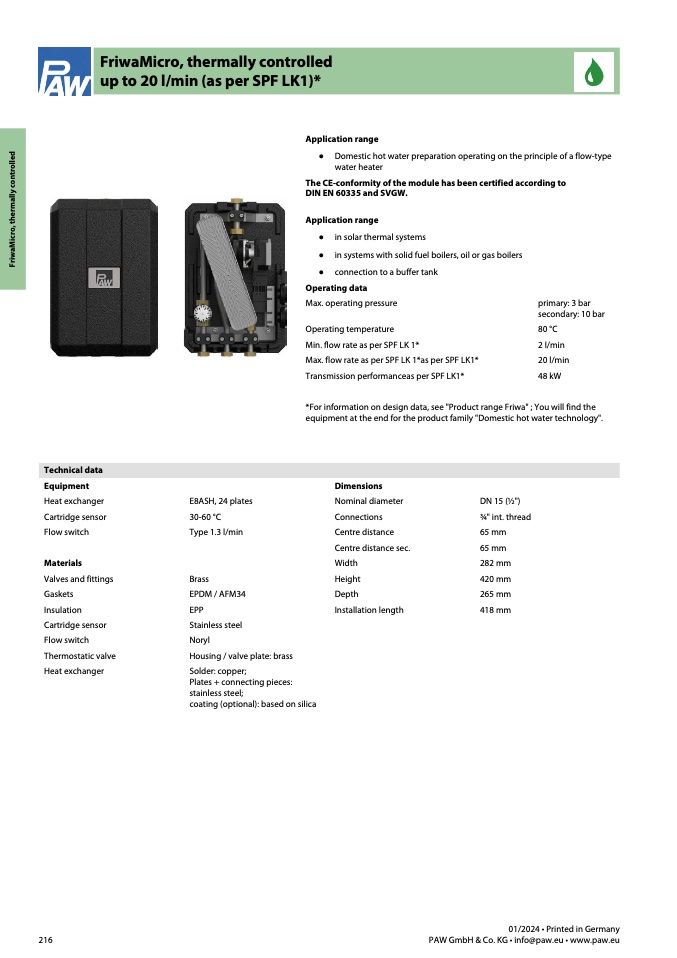

FriwaMicro, thermally controlled

up to 20 l/min (as per SPF LK1)*

F

r

i

w

a

M

i

c

r

o

,

t

h

e

r

m

a

l

l

y

c

o

n

t

r

o

l

l

e

d

Technical data

Application range

● Domestic hot water preparation operating on the principle of a flow-type

water heater

The CE-conformity of the module has been certified according to

DIN EN 60335 and SVGW.

Equipment

Heat exchanger

Cartridge sensor

Flow switch

Materials

Valves and fittings

Gaskets

Insulation

Cartridge sensor

Flow switch

Thermostatic valve

Heat exchanger

*For information on design data, see "Product range Friwa" ; You will find the

equipment at the end for the product family "Domestic hot water technology".

Dimensions

Nominal diameter

Connections

Centre distance

Centre distance sec.

Width

Height

Depth

Installation length

216

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

E8ASH, 24 plates

30-60 °C

Type 1.3 l/min

Brass

EPDM / AFM34

EPP

Stainless steel

Noryl

Housing / valve plate: brass

Solder: copper;

Plates + connecting pieces:

stainless steel;

coating (optional): based on silica

DN 15 (1⁄2")

3⁄4" int. thread

65 mm

65 mm

282 mm

420 mm

265 mm

418 mm

Application range

● in solar thermal systems

● in systems with solid fuel boilers, oil or gas boilers

● connection to a buffer tank

Operating data

Max. operating pressure

Operating temperature

Min. flow rate as per SPF LK 1*

Max. flow rate as per SPF LK 1*as per SPF LK1*

Transmission performanceas per SPF LK1*

primary: 3 bar

secondary: 10 bar

80 °C

2 l/min

20 l/min

48 kW
