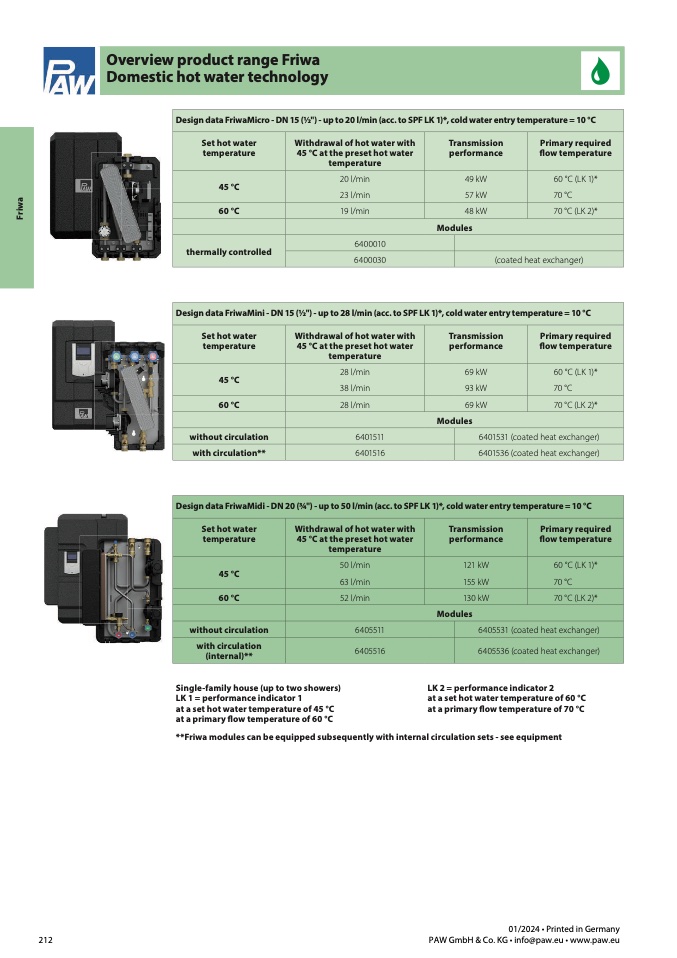

Overview product range Friwa

Domestic hot water technology

Design data FriwaMicro - DN 15 (1⁄2") - up to 20 l/min (acc. to SPF LK 1)*, cold water entry temperature = 10 °C

Set hot water

temperature

Withdrawal of hot water with

45 °C at the preset hot water

temperature

Transmission

performance

Primary required

flow temperature

45 °C

20 l/min

49kW

60 °C (LK 1)*

23 l/min

57kW

70°C

60 °C

19 l/min

48 kW

70 °C (LK 2)*

Modules

thermally controlled

6400010

6400030

(coated heat exchanger)

F

r

i

w

a

Design data FriwaMini - DN 15 (

1⁄2") - up to 28 l/min (acc. to SPF LK 1)*, cold water entry temperature = 10 °C

Set hot water

temperature

Withdrawal of hot water with

45 °C at the preset hot water

temperature

Transmission

performance

Primary required

flow temperature

45 °C

28 l/min

69 kW

60 °C (LK 1)*

38 l/min

93kW

70°C

60 °C

28 l/min

69 kW

70 °C (LK 2)*

Modules

without circulation

6401511

6401531 (coated heat exchanger)

with circulation**

6401516

6401536 (coated heat exchanger)

Design data FriwaMidi - DN 20 (

3⁄4") - up to 50 l/min (acc. to SPF LK 1)*, cold water entry temperature = 10 °C

Set hot water

temperature

Withdrawal of hot water with

45 °C at the preset hot water

temperature

Transmission

performance

Primary required

flow temperature

45 °C

50 l/min

121kW

60 °C (LK 1)*

63 l/min

155kW

70°C

60 °C

52 l/min

130 kW

70 °C (LK 2)*

Modules

without circulation

6405511

6405531 (coated heat exchanger)

with circulation

(internal)**

6405516

6405536 (coated heat exchanger)

212

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

Single-family house (up to two showers)

LK 1 = performance indicator 1

at a set hot water temperature of 45 °C

at a primary

flow temperature of 60 °C

LK 2 = performance indicator 2

at a set hot water temperature of 60 °C

at a primary flow temperature of 70 °C

**Friwa modules can be equipped subsequently with internal circulation sets - see equipment
