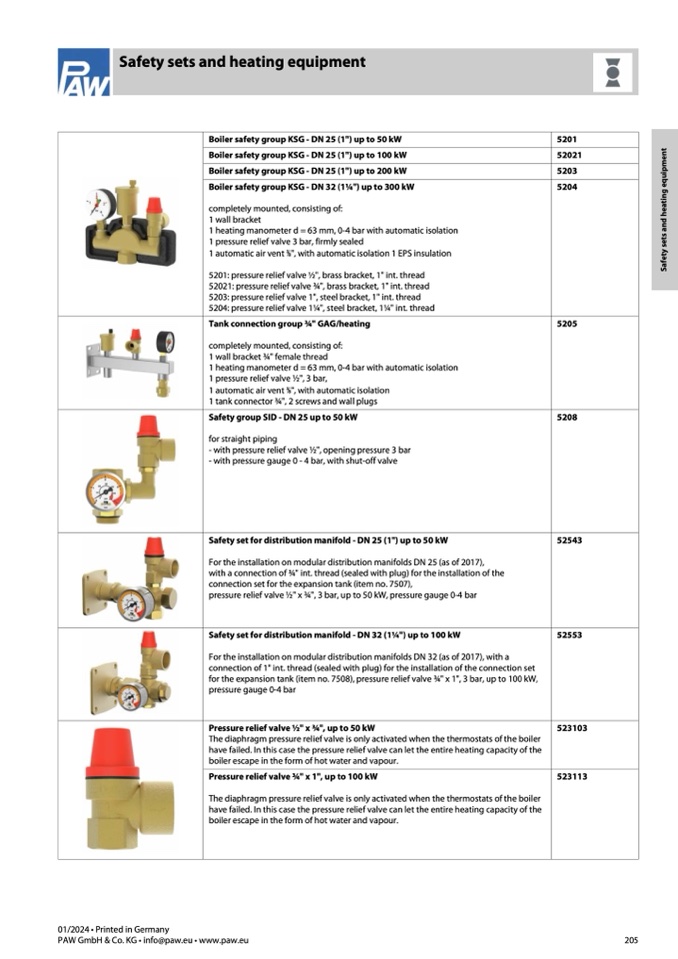

Safety sets and heating equipment

Boiler safety group KSG - DN 32 (11⁄4") up to 300 kW

completely mounted, consisting of:

1 wall bracket

1 heating manometer d = 63 mm, 0-4 bar with automatic isolation

1 pressure relief valve 3 bar, firmly sealed

1 automatic air vent

3⁄8", with automatic isolation 1 EPS insulation

5201: pressure relief valve

1⁄2", brass bracket, 1" int. thread

52021: pressure relief valve

3⁄4", brass bracket, 1" int. thread

5203: pressure relief valve 1", steel bracket, 1" int. thread

5204: pressure relief valve 1

1⁄4", steel bracket, 1

1⁄4" int. thread

5204

Tank connection group

3⁄4" GAG/heating

completely mounted, consisting of:

1 wall bracket

3⁄4" female thread

1 heating manometer d = 63 mm, 0-4 bar with automatic isolation

1 pressure relief valve 1⁄2", 3 bar,

1 automatic air vent

3⁄8", with automatic isolation

1 tank connector 3⁄4", 2 screws and wall plugs

Safety group SID - DN 25 up to 50 kW

for straight piping

- with pressure relief valve

1⁄2", opening pressure 3 bar

- with pressure gauge 0 - 4 bar, with shut-off valve

5205

5208

Safety set for distribution manifold - DN 25 (1") up to 50 kW

For the installation on modular distribution manifolds DN 25 (as of 2017),

with a connection of

3⁄4" int. thread (sealed with plug) for the installation of the

connection set for the expansion tank (item no. 7507),

pressure relief valve

1⁄2" x

3⁄4", 3 bar, up to 50 kW, pressure gauge 0-4 bar

52543

Safety set for distribution manifold - DN 32 (1

1⁄4") up to 100 kW

For the installation on modular distribution manifolds DN 32 (as of 2017), with a

connection of 1" int. thread (sealed with plug) for the installation of the connection set

for the expansion tank (item no. 7508), pressure relief valve 3⁄4" x 1", 3 bar, up to 100 kW,

pressure gauge 0-4 bar

52553

Pressure relief valve 1⁄2" x

3⁄4", up to 50 kW

The diaphragm pressure relief valve is only activated when the thermostats of the boiler

have failed. In this case the pressure relief valve can let the entire heating capacity of the

boiler escape in the form of hot water and vapour.

523103

Pressure relief valve 3⁄4" x 1", up to 100 kW

The diaphragm pressure relief valve is only activated when the thermostats of the boiler

have failed. In this case the pressure relief valve can let the entire heating capacity of the

boiler escape in the form of hot water and vapour.

523113

Boiler safety group KSG - DN 25 (1") up to 50 kW

Boiler safety group KSG - DN 25 (1") up to 100 kW

Boiler safety group KSG - DN 25 (1") up to 200 kW
