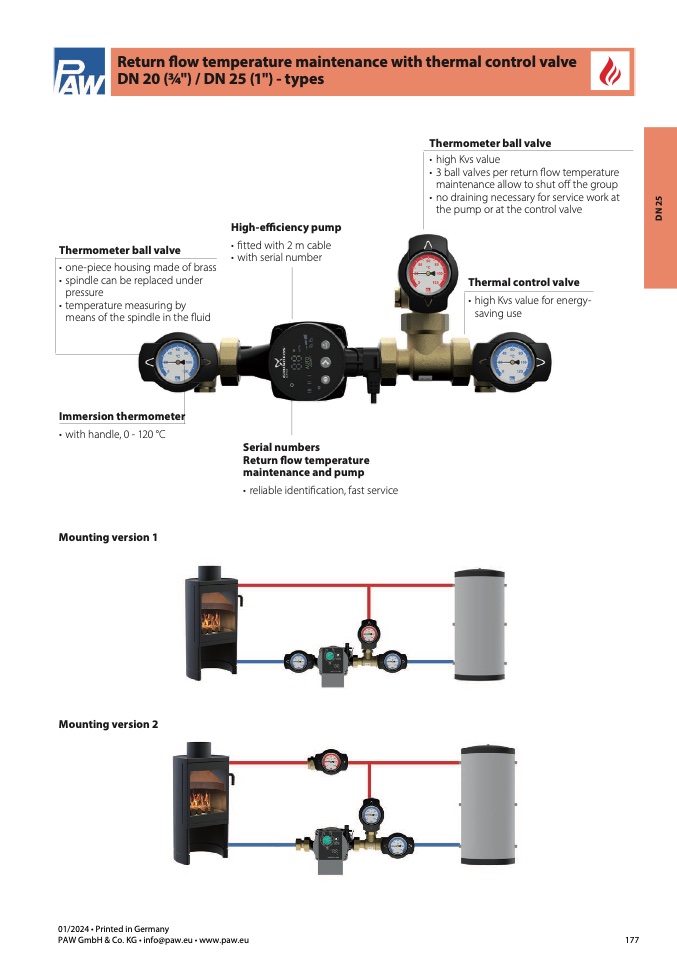

Thermometer ball valve

• one-piece housing made of brass

• spindle can be replaced under

pressure

• temperature measuring by

means of the spindle in the

fluid

Immersion thermometer

• with handle, 0 - 120 °C

Mounting version 1

High-e

fficiency pump

•

fitted with 2 m cable

• with serial number

Thermometer ball valve

• high Kvs value

• 3 ball valves per return

flow temperature

maintenance allow to shut off the group

• no draining necessary for service work at

the pump or at the control valve

Thermal control valve

• high Kvs value for energy-

saving use

Serial numbers

Return flow temperature

maintenance and pump

• reliable identification, fast service

Mounting version 2

Return flow temperature maintenance with thermal control valve

DN 20 (

3⁄4") / DN 25 (1") - types

01/2024 • Printed in Germany
