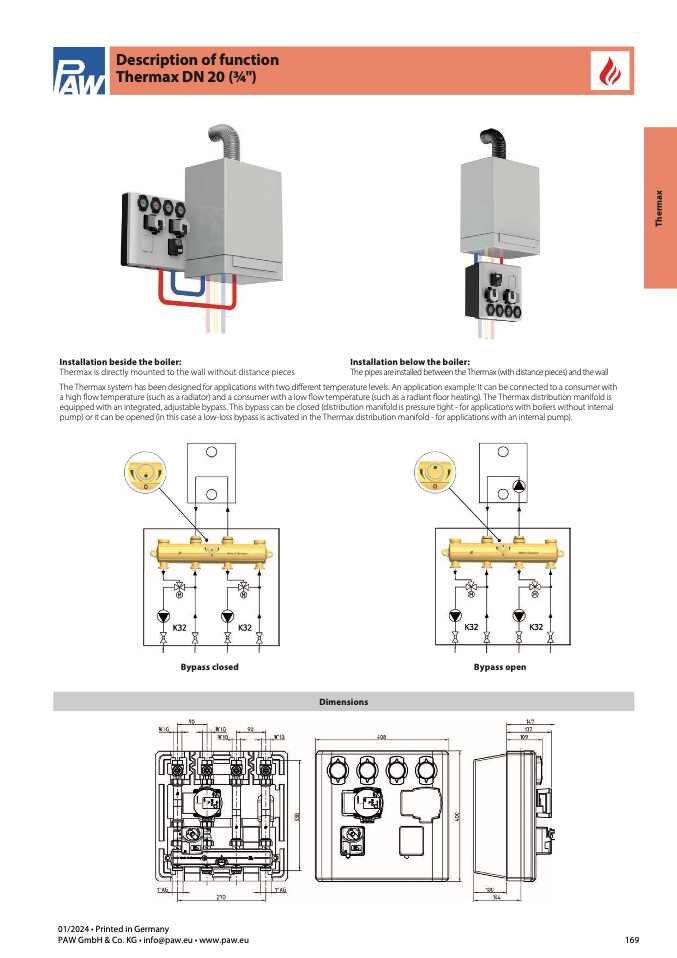

Description of function

Thermax DN 20 (3⁄4")

Installation beside the boiler:

Installation below the boiler:

Thermax is directly mounted to the wall without distance pieces

The pipes are installed between the Thermax (with distance pieces) and the wall

The Thermax system has been designed for applications with two di

fferent temperature levels. An application example: It can be connected to a consumer with

a high flow temperature (such as a radiator) and a consumer with a low

flow temperature (such as a radiant

floor heating). The Thermax distribution manifold is

equipped with an integrated, adjustable bypass. This bypass can be closed (distribution manifold is pressure tight - for applications with boilers without internal

pump) or it can be opened (in this case a low-loss bypass is activated in the Thermax distribution manifold - for applications with an internal pump).

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

169

Bypass closed

Bypass open

Dimensions
