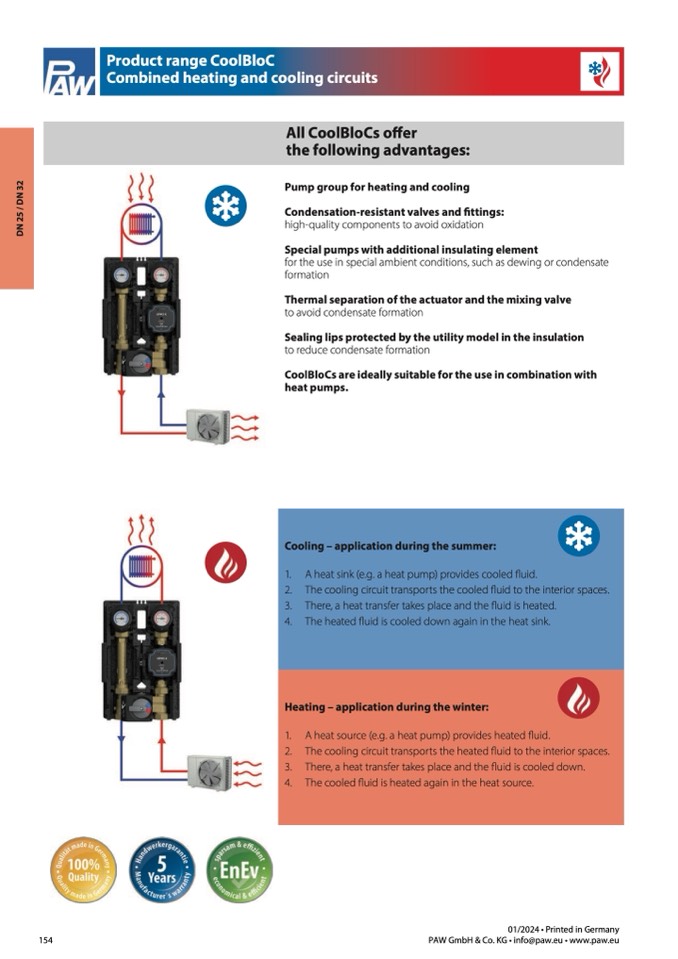

Product range CoolBloC

Combined heating and cooling circuits

All CoolBloCs offer

the following advantages:

D

N

2

5

/

D

N

3

2

Cooling – application during the summer:

1. A heat sink (e.g. a heat pump) provides cooled

fluid.

2. The cooling circuit transports the cooled

fluid to the interior spaces.

3. There, a heat transfer takes place and the fluid is heated.

4. The heated fluid is cooled down again in the heat sink.

Heating – application during the winter:

1. A heat source (e.g. a heat pump) provides heated

fluid.

2. The cooling circuit transports the heated

fluid to the interior spaces.

3. There, a heat transfer takes place and the fluid is cooled down.

4. The cooled fluid is heated again in the heat source.

Pump group for heating and cooling

Condensation-resistant valves and fittings:

high-quality components to avoid oxidation

Special pumps with additional insulating element

for the use in special ambient conditions, such as dewing or condensate

formation

Thermal separation of the actuator and the mixing valve

to avoid condensate formation

Sealing lips protected by the utility model in the insulation

to reduce condensate formation

CoolBloCs are ideally suitable for the use in combination with

heat pumps.

154
