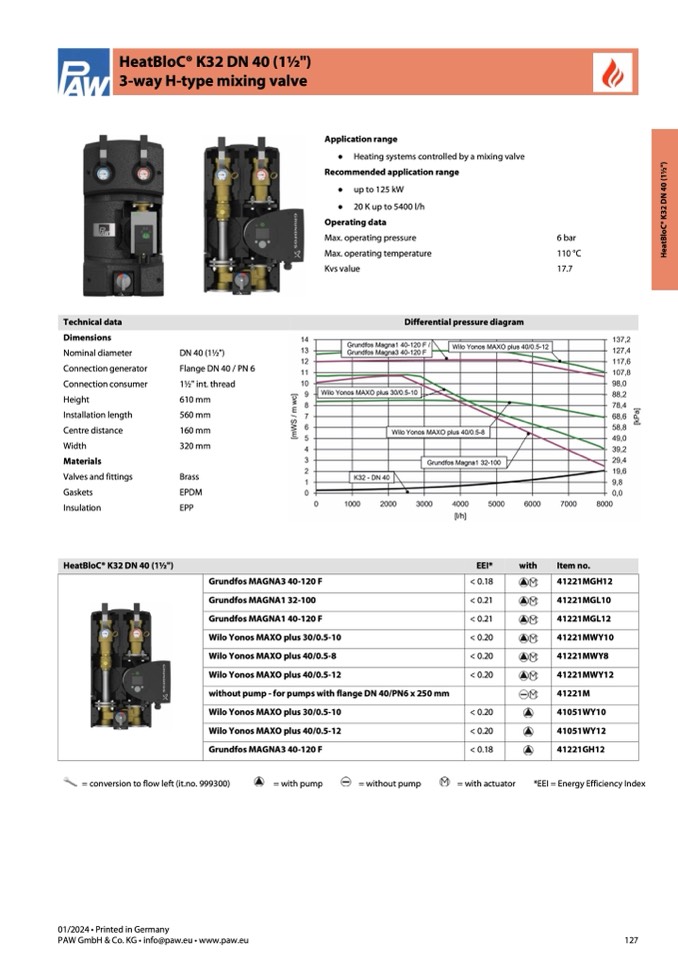

HeatBloC® K32 DN 40 (1

1⁄2")

3-way H-type mixing valve

Application range

● Heating systems controlled by a mixing valve

Recommended application range

● up to 125 kW

● 20 K up to 5400 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

Differential pressure diagram

6 bar

110 °C

17.7

Technical data

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

DN 40 (1

1⁄2")

Flange DN 40 / PN 6

11⁄2" int. thread

610 mm

560 mm

160 mm

320 mm

Brass

EPDM

EPP

HeatBloC® K32 DN 40 (1

1⁄2")

EEI*

< 0.18

< 0.21

< 0.21

< 0.20

< 0.20

< 0.20

< 0.20

< 0.20

< 0.18

= with actuator

with

Item no.

41221MGH12

41221MGL10

41221MGL12

41221MWY10

41221MWY8

41221MWY12

41221M

41051WY10

41051WY12

41221GH12

Grundfos MAGNA3 40-120 F

Grundfos MAGNA1 32-100

Grundfos MAGNA1 40-120 F

Wilo Yonos MAXO plus 30/0.5-10

Wilo Yonos MAXO plus 40/0.5-8

Wilo Yonos MAXO plus 40/0.5-12

without pump - for pumps with flange DN 40/PN6 x 250 mm

Wilo Yonos MAXO plus 30/0.5-10

Wilo Yonos MAXO plus 40/0.5-12

Grundfos MAGNA3 40-120 F

= conversion to flow left (it.no. 999300)

= with pump

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

= without pump

*EEI = Energy Efficiency Index
