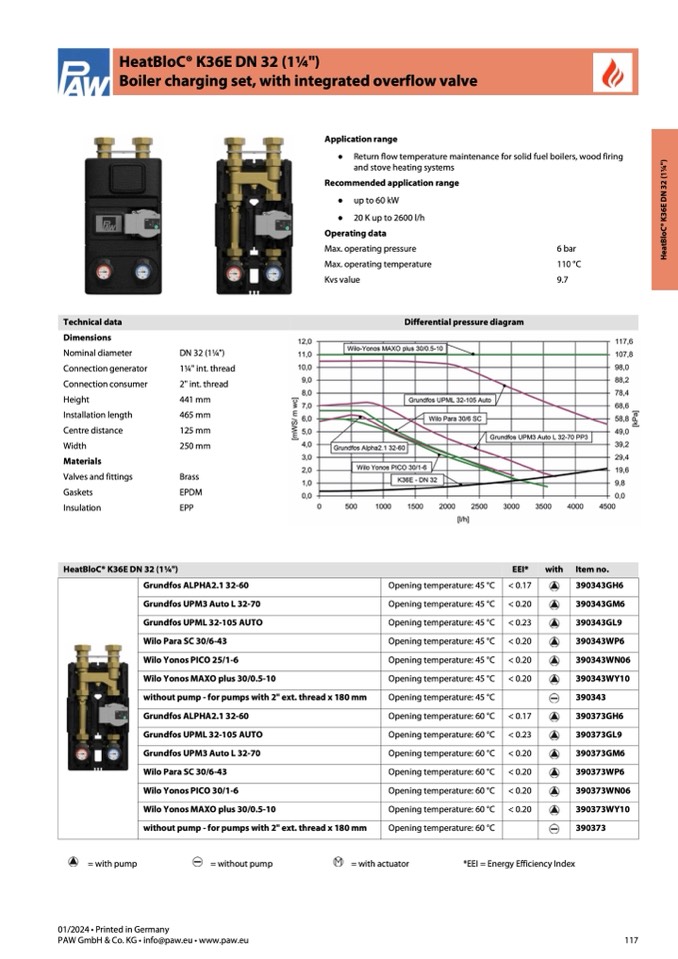

HeatBloC® K36E DN 32 (1
1⁄4")
Boiler charging set, with integrated overflow valve
Application range
● Return flow temperature maintenance for solid
and stove heating systems
Recommended application range
● up to 60 kW
● 20 K up to 2600 l/h
Operating data
Max. operating pressure
Max. operating temperature
Kvs value
fuel boilers, wood firing
6 bar
110 °C
9.7
Technical data
Dimensions
Nominal diameter
Connection generator
Connection consumer
Height
Installation length
Centre distance
Width
Materials
Valves and fittings
Gaskets
Insulation
= with pump
Differential pressure diagram
DN 32 (1
1⁄4")
11⁄4" int. thread
2" int. thread
441 mm
465 mm
125 mm
250 mm
Brass
EPDM
EPP
Grundfos ALPHA2.1 32-60
Grundfos UPM3 Auto L 32-70
Grundfos UPML 32-105 AUTO
Wilo Para SC 30/6-43
Wilo Yonos PICO 25/1-6
Wilo Yonos MAXO plus 30/0.5-10
without pump - for pumps with 2" ext. thread x 180 mm
Grundfos ALPHA2.1 32-60
Grundfos UPML 32-105 AUTO
Grundfos UPM3 Auto L 32-70
Wilo Para SC 30/6-43
Wilo Yonos PICO 30/1-6
Wilo Yonos MAXO plus 30/0.5-10
without pump - for pumps with 2" ext. thread x 180 mm
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 45 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
Opening temperature: 60 °C
EEI*
< 0.17
< 0.20
< 0.23
< 0.20
< 0.20
< 0.20
< 0.17
< 0.23
< 0.20
< 0.20
< 0.20
< 0.20
with
390343GH6
HeatBloC® K36E DN 32 (1
1⁄4")
Item no.
01/2024 • Printed in Germany
PAW GmbH & Co. KG • info@paw.eu • www.paw.eu
= without pump
= with actuator
*EEI = Energy Efficiency Index
390343GM6
390343GL9
390343WP6
390343WN06
390343WY10
390343
390373GH6
390373GL9
390373GM6
390373WP6
390373WN06
390373WY10
390373
