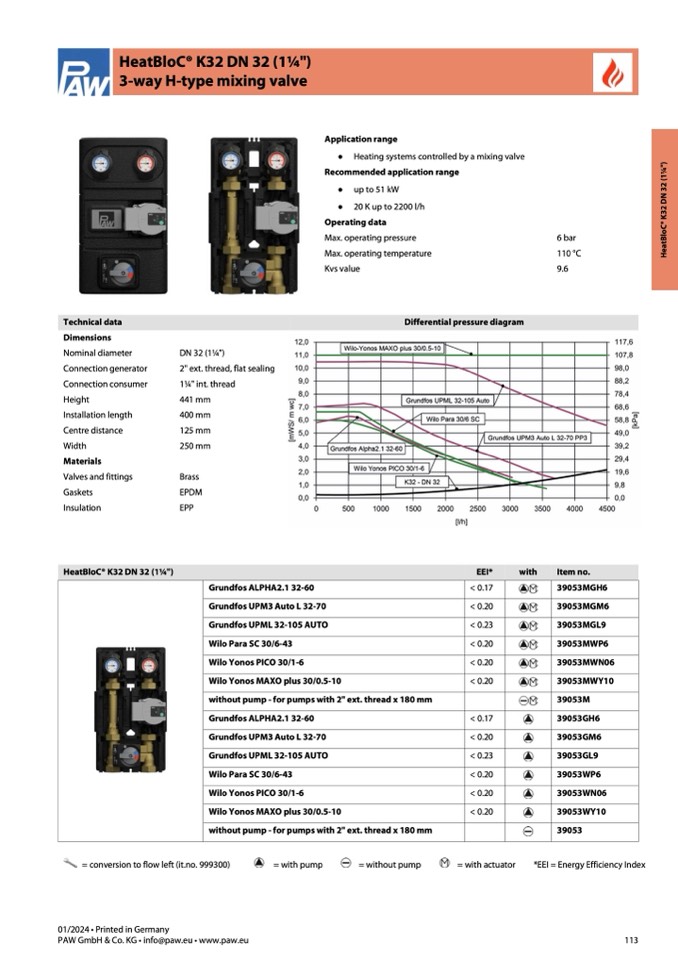

HeatBloC® K32 DN 32 (1

1⁄4")

3-way H-type mixing valve

Application range

● Heating systems controlled by a mixing valve

Recommended application range

● up to 51 kW

● 20 K up to 2200 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

Differential pressure diagram

6 bar

110 °C

9.6

Technical data

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

DN 32 (1

1⁄4")

2" ext. thread, flat sealing

11⁄4" int. thread

441 mm

400 mm

125 mm

250 mm

Brass

EPDM

EPP

HeatBloC® K32 DN 32 (1

1⁄4")

EEI*

< 0.17

< 0.20

< 0.23

< 0.20

< 0.20

< 0.20

< 0.17

< 0.20

< 0.23

< 0.20

< 0.20

< 0.20

= with actuator

with

Item no.

39053MGH6

39053MGM6

39053MGL9

39053MWP6

39053MWN06

39053MWY10

39053M

39053GH6

39053GM6

39053GL9

39053WP6

39053WN06

39053WY10

39053

Grundfos ALPHA2.1 32-60

Grundfos UPM3 Auto L 32-70

Grundfos UPML 32-105 AUTO

Wilo Para SC 30/6-43

Wilo Yonos PICO 30/1-6

Wilo Yonos MAXO plus 30/0.5-10

without pump - for pumps with 2" ext. thread x 180 mm

Grundfos ALPHA2.1 32-60

Grundfos UPM3 Auto L 32-70

Grundfos UPML 32-105 AUTO

Wilo Para SC 30/6-43

Wilo Yonos PICO 30/1-6

Wilo Yonos MAXO plus 30/0.5-10

without pump - for pumps with 2" ext. thread x 180 mm

= conversion to flow left (it.no. 999300)

= with pump

= without pump

01/2024 • Printed in Germany

PAW GmbH & Co. KG • info@paw.eu • www.paw.eu

*EEI = Energy Efficiency Index
