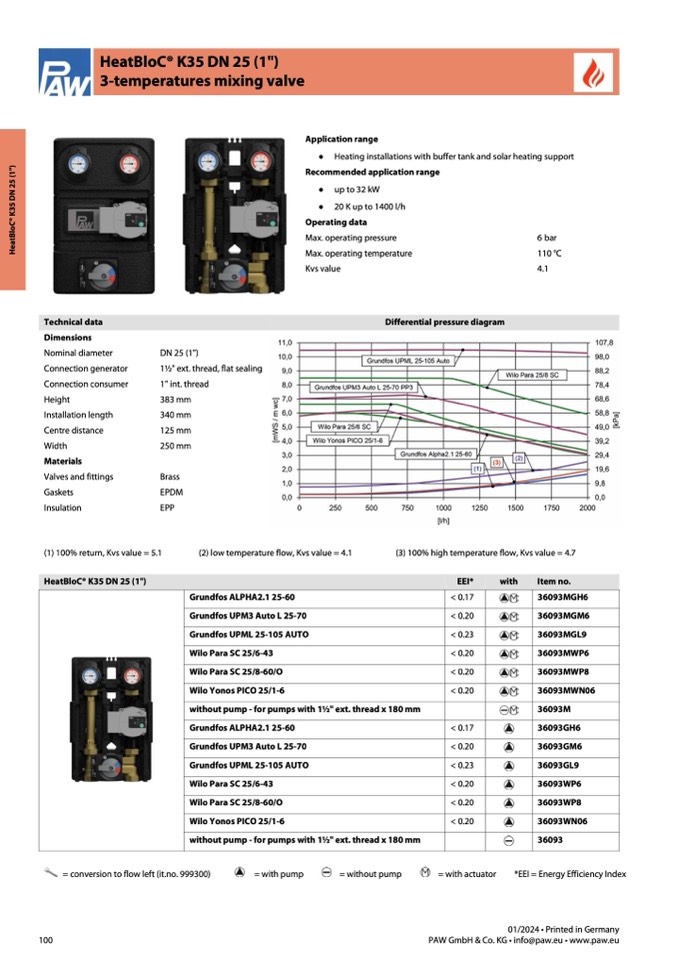

HeatBloC® K35 DN 25 (1")

3-temperatures mixing valve

H

e

a

t

B

l

o

C

®

K

3

5

D

N

2

5

(

1

"

)

Technical data

HeatBloC® K35 DN 25 (1")

Dimensions

Nominal diameter

Connection generator

Connection consumer

Height

Installation length

Centre distance

Width

Materials

Valves and fittings

Gaskets

Insulation

DN 25 (1")

1

1⁄2" ext. thread, flat sealing

1" int. thread

383 mm

340 mm

125 mm

250 mm

Brass

EPDM

EPP

Application range

● Heating installations with buffer tank and solar heating support

Recommended application range

● up to 32 kW

● 20 K up to 1400 l/h

Operating data

Max. operating pressure

Max. operating temperature

Kvs value

6 bar

110 °C

4.1

Differential pressure diagram

(1) 100% return, Kvs value = 5.1

(2) low temperature flow, Kvs value = 4.1

Grundfos ALPHA2.1 25-60

Grundfos UPM3 Auto L 25-70

Grundfos UPML 25-105 AUTO

Wilo Para SC 25/6-43

Wilo Para SC 25/8-60/O

Wilo Yonos PICO 25/1-6

without pump - for pumps with 1

1⁄2" ext. thread x 180 mm

Grundfos ALPHA2.1 25-60

Grundfos UPM3 Auto L 25-70

Grundfos UPML 25-105 AUTO

Wilo Para SC 25/6-43

Wilo Para SC 25/8-60/O

Wilo Yonos PICO 25/1-6

without pump - for pumps with 1

1⁄2" ext. thread x 180 mm

= conversion to flow left (it.no. 999300)

= with pump

= without pump

(3) 100% high temperature flow, Kvs value = 4.7

EEI*

with

< 0.17

< 0.20

< 0.23

< 0.20

< 0.20

< 0.20

< 0.17

< 0.20

< 0.23

< 0.20

< 0.20

< 0.20

= with actuator

Item no.

36093MGH6

36093MGM6

36093MGL9

36093MWP6

36093MWP8

36093MWN06

36093M

36093GH6

36093GM6

36093GL9

36093WP6

36093WP8

36093WN06

36093

*EEI = Energy Efficiency Index

100

01/2024 • Printed in Germany
