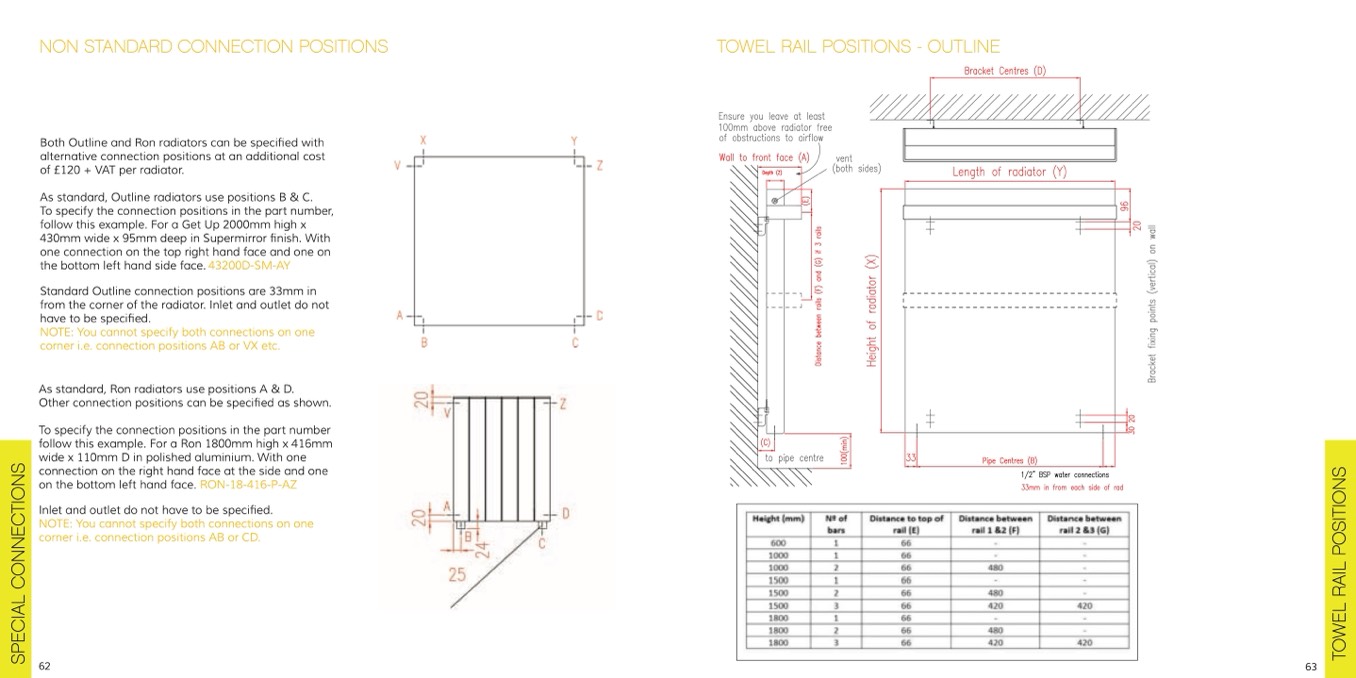

NON STANDARD CONNECTION POSITIONS

TOWEL RAIL POSITIONS - OUTLINE

Both Outline and Ron radiators can be specified with

alternative connection positions at an additional cost

of £120 + VAT per radiator.

As standard, Outline radiators use positions B & C.

To specify the connection positions in the part number,

follow this example. For a Get Up 2000mm high x

430mm wide x 95mm deep in Supermirror finish. With

one connection on the top right hand face and one on

the bottom left hand side face. 43200D-SM-AY

Standard Outline connection positions are 33mm in

from the corner of the radiator. Inlet and outlet do not

have to be specified.

NOTE: You cannot specify both connections on one

corner i.e. connection positions AB or VX etc.

As standard, Ron radiators use positions A & D.

Other connection positions can be specified as shown.

To specify the connection positions in the part number

follow this example. For a Ron 1800mm high x 416mm

wide x 110mm D in polished aluminium. With one

connection on the right hand face at the side and one

on the bottom left hand face. RON-18-416-P-AZ

Inlet and outlet do not have to be specified.

NOTE: You cannot specify both connections on one

corner i.e. connection positions AB or CD.
