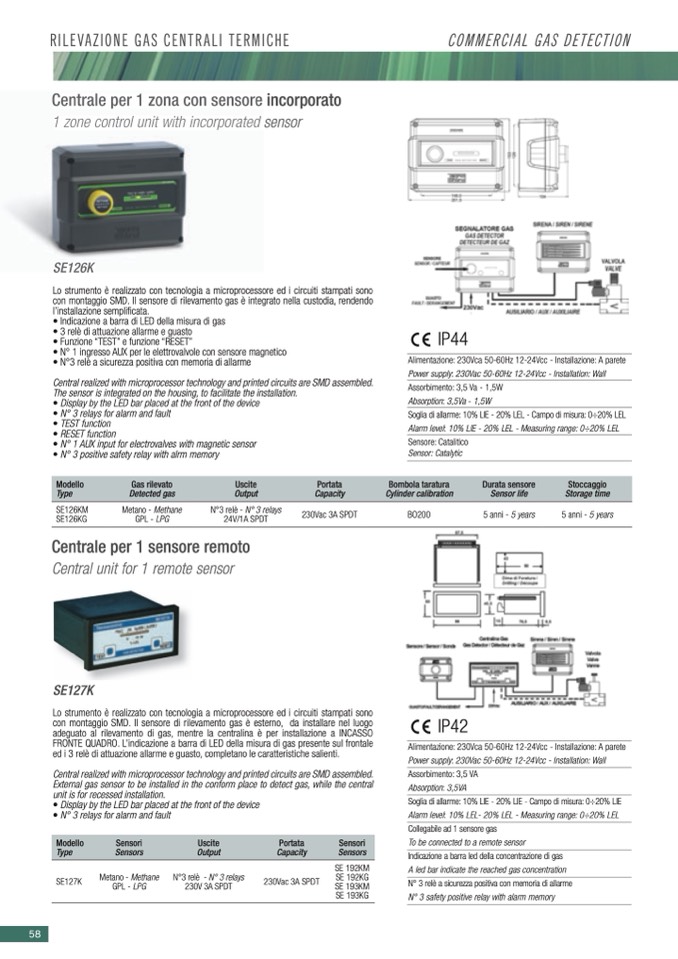

RILEVAZIONE GAS CENTRALI TERMICHE

COMMERCIAL GAS DETECTION

Modello

Type

Gas rilevato

Detected gas

Uscite

Output

Portata

Capacity

Bombola taratura

Cylinder calibration

Durata sensore

Sensor life

Stoccaggio

Storage time

SE126KM

SE126KG

Metano - Methane

GPL - LPG

N°3 relè - N° 3 relays

24V/1A SPDT

230Vac 3A SPDT

BO200

5 anni - 5 years

5 anni - 5 years

Modello

Type

Sensori

Sensors

Uscite

Output

Portata

Capacity

Sensori

Sensors

SE127K

Metano - Methane

GPL - LPG

N°3 relè - N° 3 relays

230V 3A SPDT

230Vac 3A SPDT

SE 192KM

SE 192KG

SE 193KM

SE 193KG

58

C

e incorporato

Ce

en

n t

tr

ra

al

l e

e p

p e

e r

r1

1 z zo

on

n a

a c c

o

on

n s se

e n

ns

so

or

r e

1

1z

z o

o n

ne

ec

co

o n

n t

t r

r o

ol lu

u n

ni

it tw

w i

i t

th

hi

in

nc

co

o r

r p

p o

or

ra

a t

t e

ed

ds

sensor

SE126K

Lo strumento è realizzato con tecnologia a microprocessore ed i circuiti stampati sono

con montaggio SMD. Il sensore di rilevamento gas è integrato nella custodia, rendendo

l’installazione semplificata.

• Indicazione a barra di LED della misura di gas

• 3 relè di attuazione allarme e guasto

• Funzione “TEST” e funzione “RESET”

• N° 1 ingresso AUX per le elettrovalvole con sensore magnetico

• N°3 relè a sicurezza positiva con memoria di allarme

Central realized with microprocessor technology and printed circuits are SMD assembled.

The sensor is integrated on the housing, to facilitate the installation.

• Display by the LED bar placed at the front of the device

• N° 3 relays for alarm and fault

• TEST function

• RESET function

• N° 1 AUX input for electrovalves with magnetic sensor

• N° 3 positive safety relay with alrm memory

Centrale per 1 sensore remoto

Central unit for 1 remote sensor

SE127K

Lo strumento è realizzato con tecnologia a microprocessore ed i circuiti stampati sono

con montaggio SMD. Il sensore di rilevamento gas è esterno, da installare nel luogo

adeguato al rilevamento di gas, mentre la centralina è per installazione a INCASSO

FRONTE QUADRO. L’indicazione a barra di LED della misura di gas presente sul frontale

ed i 3 relè di attuazione allarme e guasto, completano le caratteristiche salienti.

Central realized with microprocessor technology and printed circuits are SMD assembled.

External gas sensor to be installed in the conform place to detect gas, while the central

unit is for recessed installation.

• Display by the LED bar placed at the front of the device

• N° 3 relays for alarm and fault

IP44

Alimentazione: 230Vca 50-60Hz 12-24Vcc - Installazione: A parete

Power supply: 230Vac 50-60Hz 12-24Vcc - Installation: Wall

Assorbimento: 3,5 Va - 1,5W

Absorption: 3,5Va - 1,5W

Soglia di allarme: 10% LIE - 20% LEL - Campo di misura: 0÷20% LEL

Alarm level: 10% LIE - 20% LEL - Measuring range: 0÷20% LEL

Sensore: Catalitico

Sensor: Catalytic

IP42

Alimentazione: 230Vca 50-60Hz 12-24Vcc - Installazione: A parete

Power supply: 230Vac 50-60Hz 12-24Vcc - Installation: Wall

Assorbimento: 3,5 VA

Absorption: 3,5VA

Soglia di allarme: 10% LIE - 20% LIE - Campo di misura: 0÷20% LIE

Alarm level: 10% LEL- 20% LEL - Measuring range: 0÷20% LEL

Collegabile ad 1 sensore gas

To be connected to a remote sensor

Indicazione a barra led della concentrazione di gas

A led bar indicate the reached gas concentration

N° 3 relè a sicurezza positiva con memoria di allarme

N° 3 safety positive relay with alarm memory
