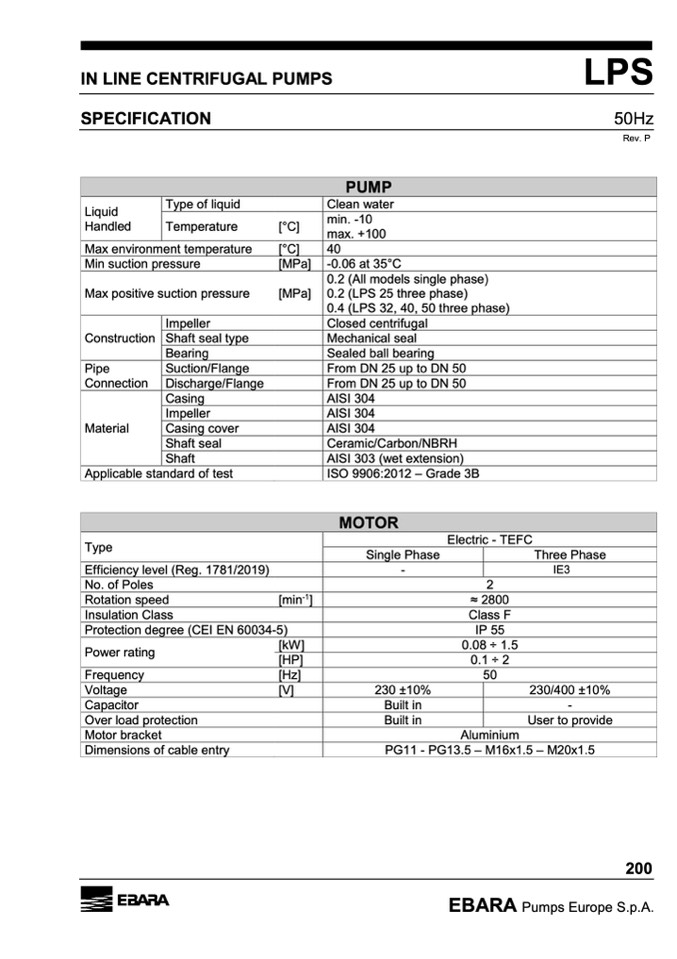

IN LINE CENTRIFUGAL PUMPS

SPECIFICATION

LPS

50Hz

Rev. P

Liquid

Type of liquid

Handled

Temperature

Max environment temperature

Min suction pressure

Max positive suction pressure

[°C]

[°C]

[MPa]

[MPa]

PUMP

Clean water

min. -10

max. +100

40

-0.06 at 35°C

0.2 (All models single phase)

0.2 (LPS 25 three phase)

0.4 (LPS 32, 40, 50 three phase)

Closed centrifugal

Mechanical seal

Sealed ball bearing

From DN 25 up to DN 50

From DN 25 up to DN 50

AISI 304

AISI 304

AISI 304

Ceramic/Carbon/NBRH

AISI 303 (wet extension)

ISO 9906:2012 – Grade 3B

Impeller

Shaft seal type

Bearing

Suction/Flange

Discharge/Flange

Casing

Impeller

Casing cover

Shaft seal

Shaft

Efficiency level (Reg. 1781/2019)

No. of Poles

Rotation speed

Insulation Class

Construction

Pipe

Connection

Material

Applicable standard of test

Type

MOTOR

Single Phase

-

Electric - TEFC

2

≈ 2800

Class F

IP 55

[min

-1

]

Three Phase

IE3

230/400 ±10%

-

User to provide

Protection degree (CEI EN 60034-5)

Power rating

Frequency

Voltage

Capacitor

Over load protection

Motor bracket

Dimensions of cable entry

[kW]

0.08 ÷ 1.5

[HP]

0.1 ÷ 2

[Hz]

50

[V]

230 ±10%

Built in

Built in

Aluminium

PG11 - PG13.5 – M16x1.5 – M20x1.5

200

EBARA Pumps Europe S.p.A.
