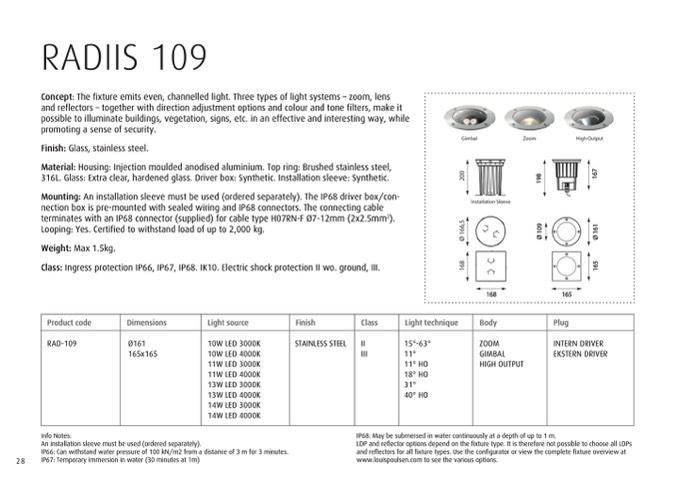

Radiis 109

Concept: The fixture emits even, channelled light. Three types of light systems – zoom, lens

and reflectors – together with direction adjustment options and colour and tone filters, make it

possible to illuminate buildings, vegetation, signs, etc. in an effective and interesting way, while

promoting a sense of security.

Finish: Glass, stainless steel.

Material: Housing: Injection moulded anodised aluminium. Top ring: Brushed stainless steel,

316L. Glass: Extra clear, hardened glass. Driver box: Synthetic. Installation sleeve: Synthetic.

Mounting: An installation sleeve must be used (ordered separately). The IP68 driver box/con-

nection box is pre-mounted with sealed wiring and IP68 connectors. The connecting cable

terminates with an IP68 connector (supplied) for cable type H07RN-F Ø7-12mm (2x2.5mm

2

).

Looping: Yes. Certified to withstand load of up to 2,000 kg.

Weight: Max 1.5kg.

Class: Ingress protection IP66, IP67, IP68. IK10. Electric shock protection II wo. ground, III.

Product code

Dimensions

Light source

Finish

Class

Light technique

Body

Plug

RAD-109

Ø161

165x165

10W LED 3000K

10W LED 4000K

11W LED 3000K

11W LED 4000K

13W LED 3000K

13W LED 4000K

14W LED 3000K

14W LED 4000K

STAINLESS STEEL

II

III

15°-63°

11°

11° Ho

18° Ho

31°

40° Ho

ZooM

GIMBAL

HIGH oUTPUT

INTERN DRIvER

EKSTERN DRIvER

28

Info Notes:

An installation sleeve must be used (ordered separately).

IP66: Can withstand water pressure of 100 kN/m2 from a distance of 3 m for 3 minutes.

IP67: Temporary immersion in water (30 minutes at 1m)

IP68: May be submersed in water continuously at a depth of up to 1 m.

LDP and reflector options depend on the fixture type. It is therefore not possible to choose all LDPs

and reflectors for all fixture types. Use the configurator or view the complete fixture overview at

www.louispoulsen.com to see the various options.
