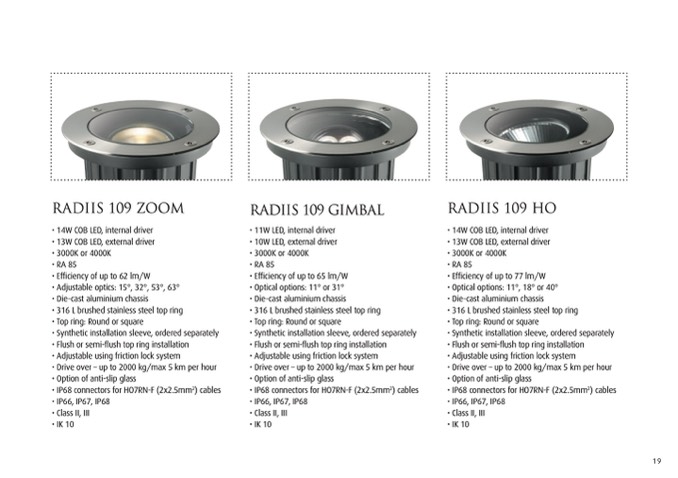

RADIIS 109 ZOOM

• 14W COB LED, internal driver

• 13W COB LED, external driver

• 3000K or 4000K

•RA85

• Efficiency of up to 62 lm/W

• Adjustable optics: 15°, 32°, 53°, 63°

• Die-cast aluminium chassis

• 316 L brushed stainless steel top ring

• Top ring: Round or square

• Synthetic installation sleeve, ordered separately

• Flush or semi-flush top ring installation

• Adjustable using friction lock system

•Driveover–upto2000kg/max5kmperhour

• Option of anti-slip glass

• IP68 connectors for HO7RN-F (2x2.5mm

2

) cables

• IP66, IP67, IP68

• Class II, III

•IK10

RADIIS 109 GIMBAL

• 11W LED, internal driver

• 10W LED, external driver

• 3000K or 4000K

•RA85

• Efficiency of up to 65 lm/W

• Optical options: 11° or 31°

• Die-cast aluminium chassis

• 316 L brushed stainless steel top ring

• Top ring: Round or square

• Synthetic installation sleeve, ordered separately

• Flush or semi-flush top ring installation

• Adjustable using friction lock system

•Driveover–upto2000kg/max5kmperhour

• Option of anti-slip glass

• IP68 connectors for HO7RN-F (2x2.5mm

2

) cables

• IP66, IP67, IP68

• Class II, III

•IK10

RADIIS 109 HO

• 14W COB LED, internal driver

• 13W COB LED, external driver

• 3000K or 4000K

•RA85

• Efficiency of up to 77 lm/W

• Optical options: 11°, 18° or 40°

• Die-cast aluminium chassis

• 316 L brushed stainless steel top ring

• Top ring: Round or square

• Synthetic installation sleeve, ordered separately

• Flush or semi-flush top ring installation

• Adjustable using friction lock system

•Driveover–upto2000kg/max5kmperhour

• Option of anti-slip glass

• IP68 connectors for HO7RN-F (2x2.5mm

2

) cables

• IP66, IP67, IP68

• Class II, III

•IK10
