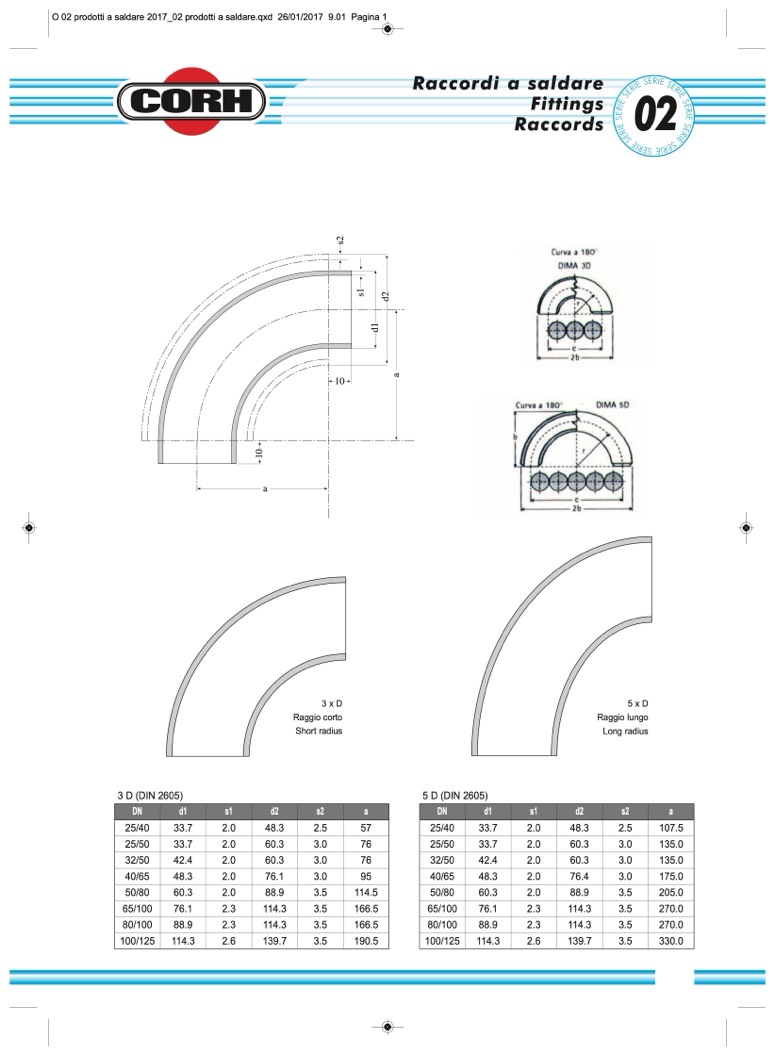

Raccordi a saldare

Fittings

Raccords

02

10

a

3 D (DIN 2605)

5 D (DIN 2605)

Raggio corto

Short radius

Raggio lungo

Long radius

3xD

5xD

DN

d1

s1

d2

s2

a

25/40

33.7

2.0

48.3

2.5

57

25/50

33.7

2.0

60.3

3.0

76

32/50

42.4

2.0

60.3

3.0

76

40/65

48.3

2.0

76.1

3.0

95

50/80

60.3

2.0

88.9

3.5

114.5

65/100

76.1

2.3

114.3

3.5

166.5

80/100

88.9

2.3

114.3

3.5

166.5

100/125

114.3

2.6

139.7

3.5

190.5

DN

d1

s1

d2

s2

a

25/40

33.7

2.0

48.3

2.5

107.5

25/50

33.7

2.0

60.3

3.0

135.0

32/50

42.4

2.0

60.3

3.0

135.0

40/65

48.3

2.0

76.4

3.0

175.0

50/80

60.3

2.0

88.9

3.5

205.0

65/100

76.1

2.3

114.3

3.5

270.0

80/100

88.9

2.3

114.3

3.5

270.0

100/125

114.3

2.6

139.7

3.5

330.0

1

0

a

d

1

d

2

s

1

s

2
