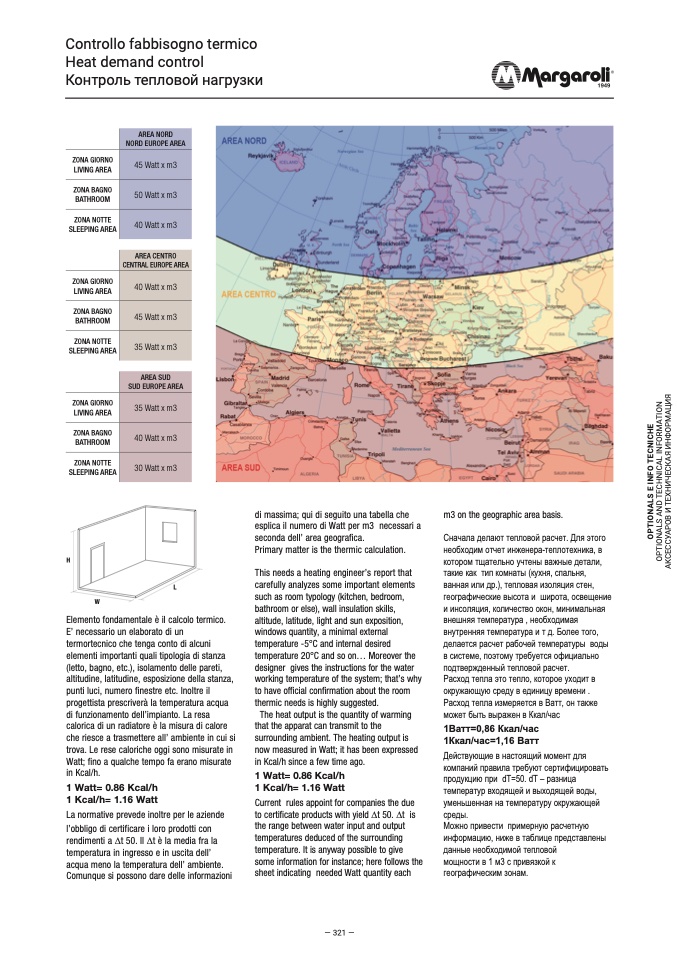

Controllo fabbisogno termico

Heat demand control

К

AREA NORD

NORD EUROPE AREA

45 Watt x m3

50 Watt x m3

40 Watt x m3

ZONA GIORNO

LIVING AREA

ZONA BAGNO

BATHROOM

ZONA NOTTE

SLEEPING AREA

ZONA GIORNO

LIVING AREA

ZONA BAGNO

BATHROOM

ZONA NOTTE

SLEEPING AREA

ZONA GIORNO

LIVING AREA

ZONA BAGNO

BATHROOM

ZONA NOTTE

SLEEPING AREA

H

di massima; qui di seguito una tabella che

esplica il numero di Watt per m3 necessari a

seconda dell’ area geografica.

Primary matter is the thermic calculation.

This needs a heating engineer’s report that

carefully analyzes some important elements

such as room typology (kitchen, bedroom,

bathroom or else), wall insulation skills,

altitude, latitude, light and sun exposition,

windows quantity, a minimal external

temperature -5°C and internal desired

temperature 20°C and so on... Moreover the

designer gives the instructions for the water

working temperature of the system; that’s why

to have official confirmation about the room

thermic needs is highly suggested.

The heat output is the quantity of warming

that the apparat can transmit to the

surrounding ambient. The heating output is

now measured in Watt; it has been expressed

in Kcal/h since a few time ago.

1 Watt= 0.86 Kcal/h

1 Kcal/h= 1.16 Watt

Current rules appoint for companies the due

to certificate products with yield ∆t 50. ∆t is

the range between water input and output

temperatures deduced of the surrounding

temperature. It is anyway possible to give

some information for instance; here follows the

sheet indicating needed Watt quantity each

m3 on the geographic area basis.

Cначала делают тепловой расчет. Для этого

необходим отчет инженера-теплотехника, в

котором тательно учтены важные детали,

такие как тип комнаты (кухня, спальня,

ванная или др.), тепловая изоляция стен,

географические высота и широта, освеение

и инсоляция, количество окон, минимальная

внешняя температура , необходимая

внутренняя температура и т д. олее того,

делается расчет рабочей температуры воды

в системе, поэтому требуется официально

подтвержденный тепловой расчет.

асход тепла это тепло, которое уходит в

окружаюую среду в единицу времени .

асход тепла измеряется в Ватт, он также

может быть выражен в Ккал/час

атт08 Ккалчас

Ккалчас атт

Действуюие в настояий момент для

компаний правила требуют сертифицировать

продукцию при 50. разница

температур входяей и выходяей воды,

уменьшенная на температуру окружаюей

среды.

Можно привести примерную расчетную

информацию, ниже в таблице представлены

данные необходимой тепловой

моности в 1 м3 с привязкой к

географическим зонам.

AREA CENTRO

CENTRAL EUROPE AREA

40 Watt x m3

45 Watt x m3

35 Watt x m3

AREA SUD

SUD EUROPE AREA

35 Watt x m3

40 Watt x m3

30 Watt x m3

W

Elemento fondamentale è il calcolo termico.

E’ necessario un elaborato di un

termortecnico che tenga conto di alcuni

elementi importanti quali tipologia di stanza

(letto, bagno, etc.), isolamento delle pareti,

altitudine, latitudine, esposizione della stanza,

punti luci, numero finestre etc. Inoltre il

progettista prescriverà la temperatura acqua

di funzionamento dell’impianto. La resa

calorica di un radiatore è la misura di calore

che riesce a trasmettere all’ ambiente in cui si

trova. Le rese caloriche oggi sono misurate in

Watt; fino a qualche tempo fa erano misurate

in Kcal/h.

1 Watt= 0.86 Kcal/h

1 Kcal/h= 1.16 Watt

La normative prevede inoltre per le aziende

l’obbligo di certificare i loro prodotti con

rendimenti a ∆t 50. Il ∆t è la media fra la

temperatura in ingresso e in uscita dell’

acqua meno la temperatura dell’ ambiente.

Comunque si possono dare delle informazioni

L
