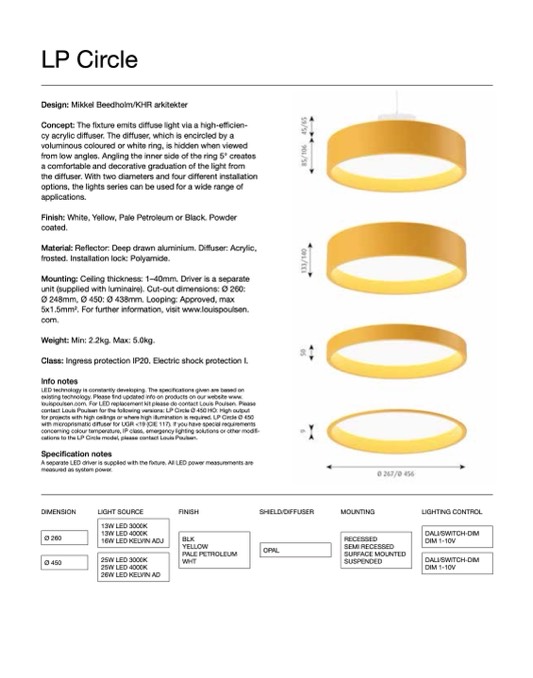

LP Circle

Design: Mikkel Beedholm/KHR arkitekter

Concept: The fixture emits diffuse light via a high-efficien-

cy acrylic diffuser. The diffuser, which is encircled by a

voluminous coloured or white ring, is hidden when viewed

from low angles. Angling the inner side of the ring 5° creates

a comfortable and decorative graduation of the light from

the diffuser. With two diameters and four different installation

options, the lights series can be used for a wide range of

applications.

Finish: White, Yellow, Pale Petroleum or Black. Powder

coated.

Material: Reflector: Deep drawn aluminium. Diffuser: Acrylic,

frosted. Installation lock: Polyamide.

Mounting: Ceiling thickness: 1–40mm. Driver is a separate

unit (supplied with luminaire). Cut-out dimensions: Ø 260:

Ø 248mm, Ø 450: Ø 438mm. Looping: Approved, max

5x1.5mm2. For further information, visit www.louispoulsen.

com.

Weight: Min: 2.2kg. Max: 5.0kg.

Class: Ingress protection IP20. Electric shock protection I.

Info notes

LED technology is constantly developing. The specifications given are based on

existing technology. Please find updated info on products on our website www.

louispoulsen.com. For LED replacement kit please do contact Louis Poulsen. Please

contact Louis Poulsen for the following versions: LP Circle Ø 450 HO: High output

for projects with high ceilings or where high illumination is required. LP Circle Ø 450

with microprismatic diffuser for UGR <19 (CIE 117). If you have special requirements

concerning colour temperature, IP class, emergency lighting solutions or other modifi-

cations to the LP Circle model, please contact Louis Poulsen.

Specification notes

A separate LED driver is supplied with the fixture. All LED power measurements are

measured as system power.

DIMENSION

LIGHT SOURCE

FINISH

SHIELD/DIFFUSER

MOUNTING

LIGHTING CONTROL

13W LED 3000K

13W LED 4000K

16W LED KELVIN ADJ

DALI/SWITCH-DIM

DIM 1-10V

Ø 260

BLK

YELLOW

PALE PETROLEUM

WHT

RECESSED

SEMI RECESSED

SURFACE MOUNTED

SUSPENDED

OPAL

Ø 450

25W LED 3000K

25W LED 4000K

26W LED KELVIN AD

DALI/SWITCH-DIM

DIM 1-10V
