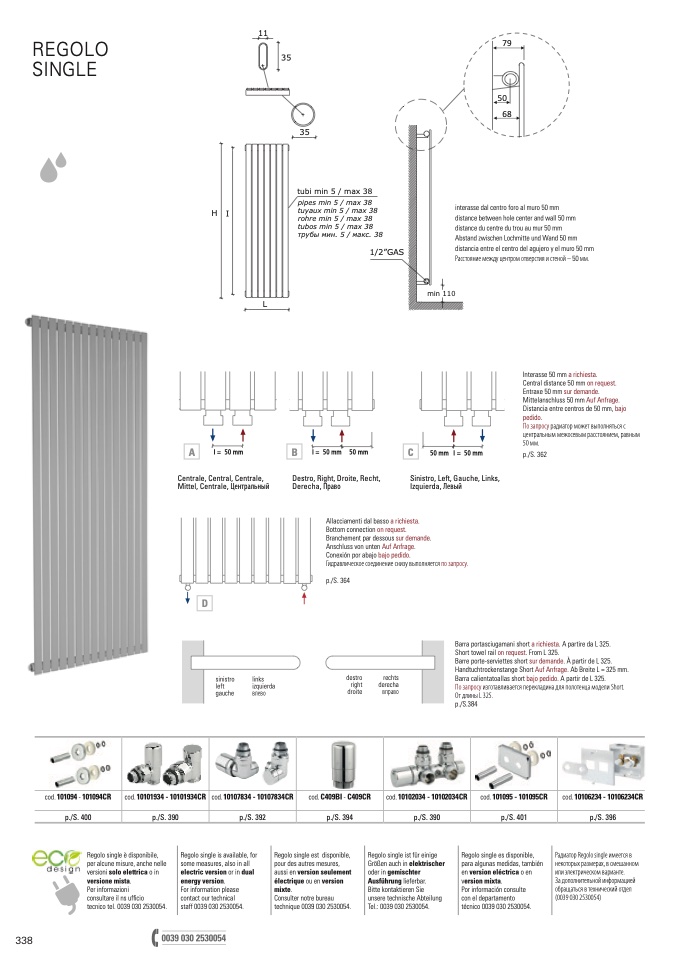

REGOLO

SINGLE

11

35

35

tubi min 5 / max 38

79

68

interasse dal centro foro al muro 50 mm

distance between hole center and wall 50 mm

distance du centre du trou au mur 50 mm

Abstand zwischen Lochmitte und Wand 50 mm

distancia entre el centro del agujero y el muro 50 mm

Расстояние между центром отверстия и стеной – 50 мм.

H

I

pipes min 5 / max 38

tuyaux min 5 / max 38

rohre min 5 / max 38

tubos min 5 / max 38

трубы мин. 5 / макс. 38

1/2”GAS

min 110

L

A

I= 50mm

I= 50mm 50mm

Destro, Right, Droite, Recht,

Allacciamenti dal basso a richiesta.

Bottom connection on request.

Branchement par dessous sur demande.

Anschluss von unten Auf Anfrage.

Conexión por abajo bajo pedido.

Гидравлическое соединение снизу выполняется по запросу.

p./S. 364

Interasse 50 mm a richiesta.

Central distance 50 mm on request.

Entraxe 50 mm sur demande.

Mittelanschluss 50 mm Auf Anfrage.

Distancia entre centros de 50 mm, bajo

pedido.

По запросу радиатор может выполняться с

центральным межосевым расстоянием, равным

50 мм.

p./S. 362

Centrale, Central, Centrale,

Mittel, Centrale, Центральный

Derecha, Право

Sinistro, Left, Gauche, Links,

Izquierda, Левый

B

C

50

50 mm I = 50 mm

D

Barra portasciugamani short a richiesta. A partire da L 325.

Short towel rail on request. From L 325.

Barre porte-serviettes short sur demande. À partir de L 325.

Handtuchtrockenstange Short Auf Anfrage. Ab Breite L = 325 mm.

Barra calientatoallas short bajo pedido. A partir de L 325.

По запросу изготавливается перекладина для полотенца модели Short.

От длины L 325.

p./S.384

sinistro

left

gauche

links

izquierda

влево

destro

right

droite

rechts

derecha

вправо

cod. 101094 - 101094CR

cod. 10101934 - 10101934CR

cod. 10107834 - 10107834CR

cod. C409BI - C409CR

cod. 10102034 - 10102034CR

cod. 101095 - 101095CR

p./S. 400

p./S. 390

p./S. 392

p./S. 394

p./S. 390

p./S. 401

Regolo single è disponibile,

per alcune misure, anche nelle

versioni solo elettrica o in

versione mista.

Per informazioni

consultare il ns ufficio

tecnico tel. 0039 030 2530054.

Regolo single is available, for

some measures, also in all

electric version or in dual

energy version.

For information please

contact our technical

staff 0039 030 2530054.

Regolo single est disponible,

pour des autres mesures,

aussi en version seulement

électrique ou en version

mixte.

Consulter notre bureau

technique 0039 030 2530054.

Regolo single ist für einige

Größen auch in elektrischer

oder in gemischter

Ausführung lieferbar.

Bitte kontaktieren Sie

unsere technische Abteilung

Tel.: 0039 030 2530054.

Regolo single es disponible,

para algunas medidas, también

en version eléctrica o en

version mixta.

Por información consulte

con el departamento

técnico 0039 030 2530054.

cod. 10106234 - 10106234CR

p./S. 396

Радиатор Regolo single имеется в

некоторых размерах, в смешанном

или электрическом варианте.

За дополнительной информацией

обращаться в технический отдел

(0039 030 2530054)

338
