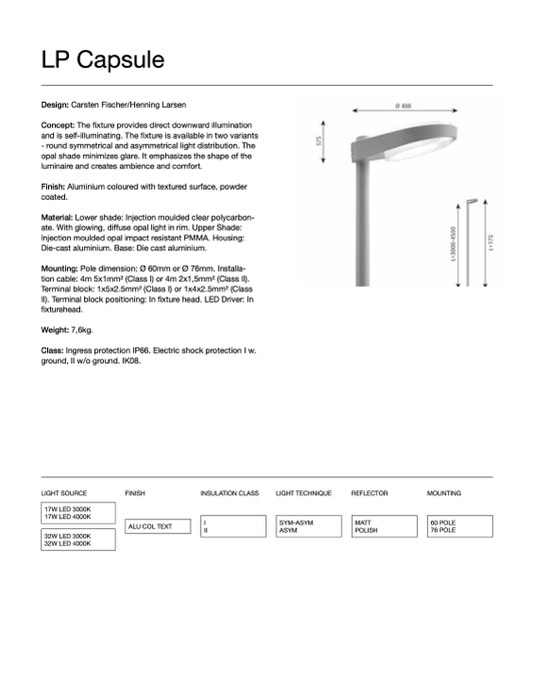

LP Capsule

Design: Carsten Fischer/Henning Larsen

Concept: The fixture provides direct downward illumination

and is self-illuminating. The fixture is available in two variants

- round symmetrical and asymmetrical light distribution. The

opal shade minimizes glare. It emphasizes the shape of the

luminaire and creates ambience and comfort.

Finish: Aluminium coloured with textured surface, powder

coated.

Material: Lower shade: Injection moulded clear polycarbon-

ate. With glowing, diffuse opal light in rim. Upper Shade:

Injection moulded opal impact resistant PMMA. Housing:

Die-cast aluminium. Base: Die cast aluminium.

Mounting: Pole dimension: Ø 60mm or Ø 76mm. Installa-

tion cable: 4m 5x1mm2 (Class I) or 4m 2x1,5mm2 (Class II).

Terminal block: 1x5x2.5mm2 (Class I) or 1x4x2.5mm2 (Class

II). Terminal block positioning: In fixture head. LED Driver: In

fixturehead.

Weight: 7,6kg.

Class: Ingress protection IP66. Electric shock protection I w.

ground, II w/o ground. IK08.

LIGHT SOURCE

FINISH

INSULATION CLASS

LIGHT TECHNIQUE

REFLECTOR

MOUNTING

17W LED 3000K

17W LED 4000K

ALU COL TEXT

I

II

SYM-ASYM

ASYM

MATT

POLISH

60 POLE

76 POLE

32W LED 3000K

32W LED 4000K
