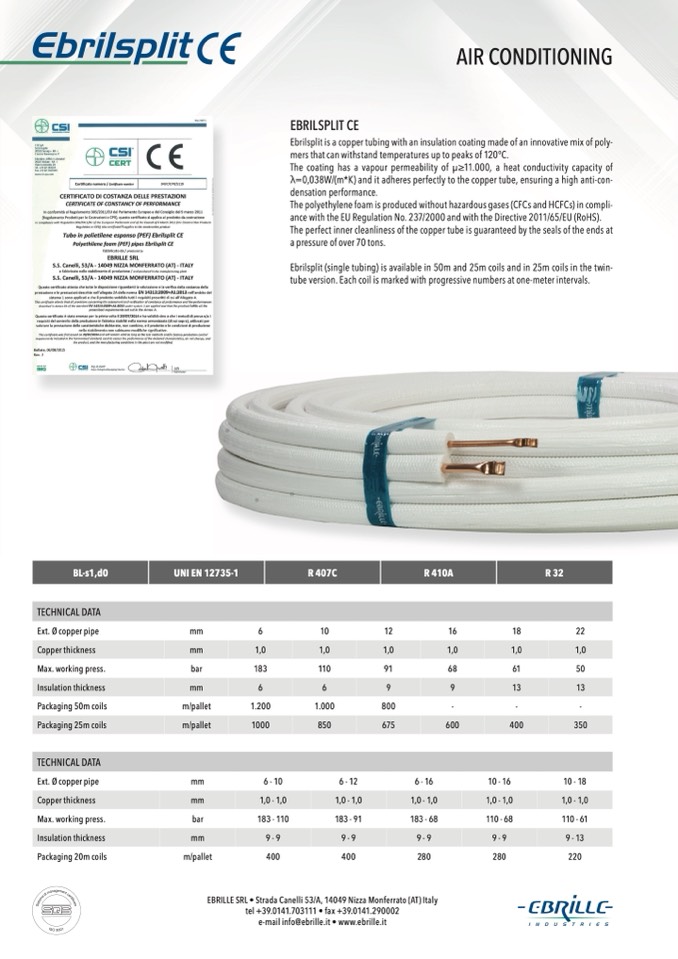

AIR CONDITIONING

EBRILSPLIT CE

Ebrilsplit is a copper tubing with an insulation coating made of an innovative mix of poly-

mers that can withstand temperatures up to peaks of 120°C.

The coating has a vapour permeability of μ≥11.000, a heat conductivity capacity of

λ=0,038W/(m*K) and it adheres perfectly to the copper tube, ensuring a high anti-con-

densation performance.

The polyethylene foam is produced without hazardous gases (CFCs and HCFCs) in compli-

ance with the EU Regulation No. 237/2000 and with the Directive 2011/65/EU (RoHS).

The perfect inner cleanliness of the copper tube is guaranteed by the seals of the ends at

a pressure of over 70 tons.

Ebrilsplit (single tubing) is available in 50m and 25m coils and in 25m coils in the twin-

tube version. Each coil is marked with progressive numbers at one-meter intervals.

BL-s1,d0

UNI EN 12735-1

R 407C

R 410A

R 32

TECHNICAL DATA

Ext. Ø copper pipe

mm

6

10

12

16

18

22

Copper thickness

mm

1,0

1,0

1,0

1,0

1,0

1,0

Max. working press.

bar

183

110

91

68

61

50

Insulation thickness

mm

6

6

9

9

13

13

Packaging 50m coils

m/pallet

1.200

1.000

800

-

-

-

Packaging 25m coils

m/pallet

1000

850

675

600

400

350

TECHNICAL DATA

Ext. Ø copper pipe

mm

6 - 10

6 - 12

6 - 16

10 - 16

10 - 18

Copper thickness

mm

1,0 - 1,0

1,0 - 1,0

1,0 - 1,0

1,0 - 1,0

1,0 - 1,0

Max. working press.

bar

183 - 110

183 - 91

183 - 68

110 - 68

110 - 61

Insulation thickness

mm

9- 9

9 -9

9 -9

9 -9

9 - 13

Packaging 20m coils

m/pallet

400

400

280

280

220

EBRILLE SRL • Strada Canelli 53/A, 14049 Nizza Monferrato (AT) Italy

tel +39.0141.703111 • fax +39.0141.290002

e-mail info@ebrille.it • www.ebrille.it
