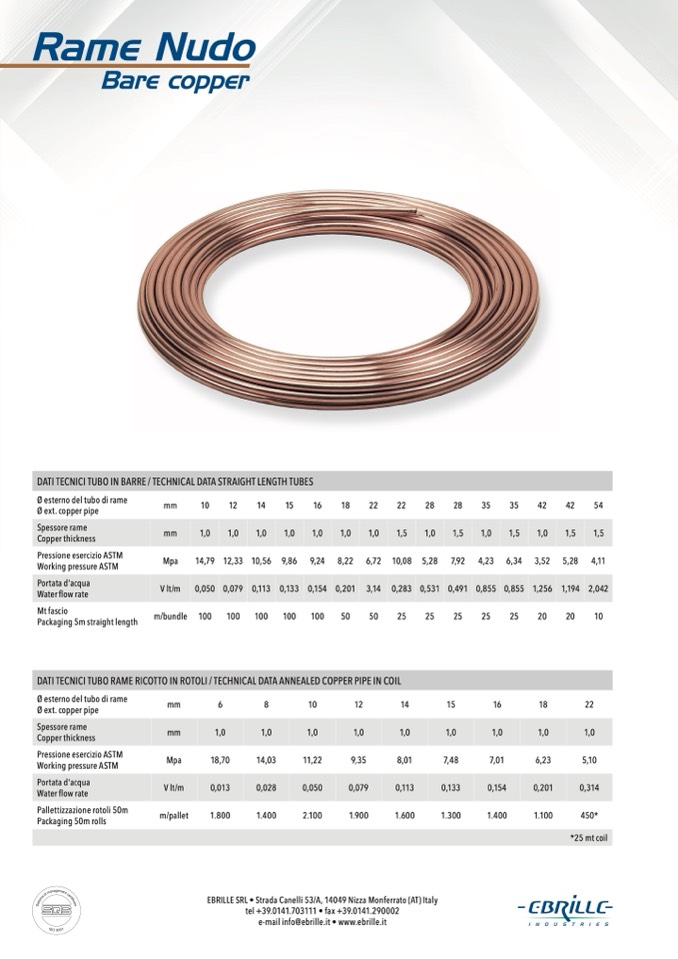

DATI TECNICI TUBO IN BARRE / TECHNICAL DATA STRAIGHT LENGTH TUBES

Ø esterno del tubo di rame

Ø ext. copper pipe

Spessore rame

Copper thickness

Pressione esercizio ASTM

Working pressure ASTM

Portata d'acqua

Water flow rate

Mt fascio

Packaging 5m straight length

mm

mm

Mpa

V lt/m

m/bundle

10

1,0

14,79

0,050

100

12

1,0

12,33

0,079

100

14

1,0

10,56

0,113

100

15

1,0

9,86

0,133

100

16

1,0

9,24

0,154

100

18

1,0

8,22

0,201

50

22

1,0

6,72

3,14

50

22

1,5

10,08

0,283

25

28

1,0

5,28

0,531

25

28

1,5

7,92

0,491

25

35

1,0

4,23

0,855

25

35

1,5

6,34

0,855

25

42

1,0

3,52

1,256

20

42

1,5

5,28

1,194

20

54

1,5

4,11

2,042

10

DATI TECNICI TUBO RAME RICOTTO IN ROTOLI / TECHNICAL DATA ANNEALED COPPER PIPE IN COIL

Ø esterno del tubo di rame

Ø ext. copper pipe

mm

6

8

10

12

14

15

16

18

22

Spessore rame

Copper thickness

mm

1,0

1,0

1,0

1,0

1,0

1,0

1,0

1,0

1,0

Pressione esercizio ASTM

Working pressure ASTM

Mpa

18,70

14,03

11,22

9,35

8,01

7,48

7,01

6,23

5,10

Portata d'acqua

Water flow rate

V lt/m

0,013

0,028

0,050

0,079

0,113

0,133

0,154

0,201

0,314

Pallettizzazione rotoli 50m

Packaging 50m rolls

m/pallet

1.800

1.400

2.100

1.900

1.600

1.300

1.400

1.100

450*

*25 mt coil
