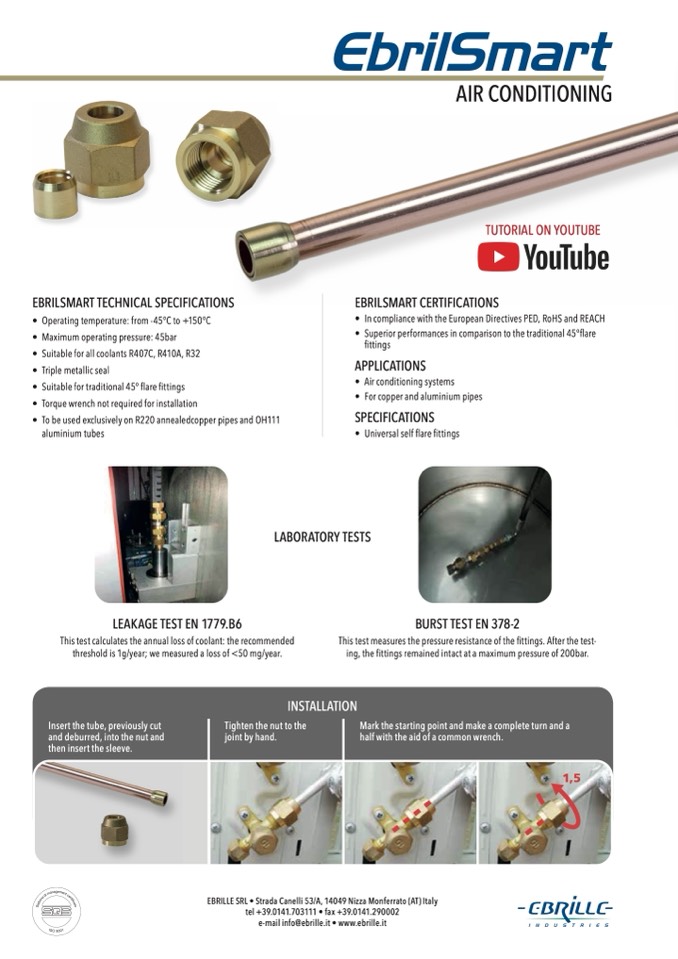

EBRILSMART TECHNICAL SPECIFICATIONS

• Operating temperature: from -45°C to +150°C

• Maximum operating pressure: 45bar

• Suitable for all coolants R407C, R410A, R32

• Triple metallic seal

• Suitable for traditional 45° flare fittings

• Torque wrench not required for installation

• To be used exclusively on R220 annealedcopper pipes and OH111

aluminium tubes

AIR CONDITIONING

TUTORIAL ON YOUTUBE

EBRILSMART CERTIFICATIONS

• In compliance with the European Directives PED, RoHS and REACH

• Superior performances in comparison to the traditional 45°flare

fittings

APPLICATIONS

• Air conditioning systems

• For copper and aluminium pipes

SPECIFICATIONS

• Universal self flare fittings

LEAKAGE TEST EN 1779.B6

This test calculates the annual loss of coolant: the recommended

threshold is 1g/year; we measured a loss of <50 mg/year.

BURST TEST EN 378-2

This test measures the pressure resistance of the fittings. After the test-

ing, the fittings remained intact at a maximum pressure of 200bar.

LABORATORY TESTS

Insert the tube, previously cut

and deburred, into the nut and

then insert the sleeve.

INSTALLATION

Tighten the nut to the

Mark the starting point and make a complete turn and a

joint by hand.

half with the aid of a common wrench.

EBRILLE SRL • Strada Canelli 53/A, 14049 Nizza Monferrato (AT) Italy

tel +39.0141.703111 • fax +39.0141.290002

e-mail info@ebrille.it • www.ebrille.it

1,5
