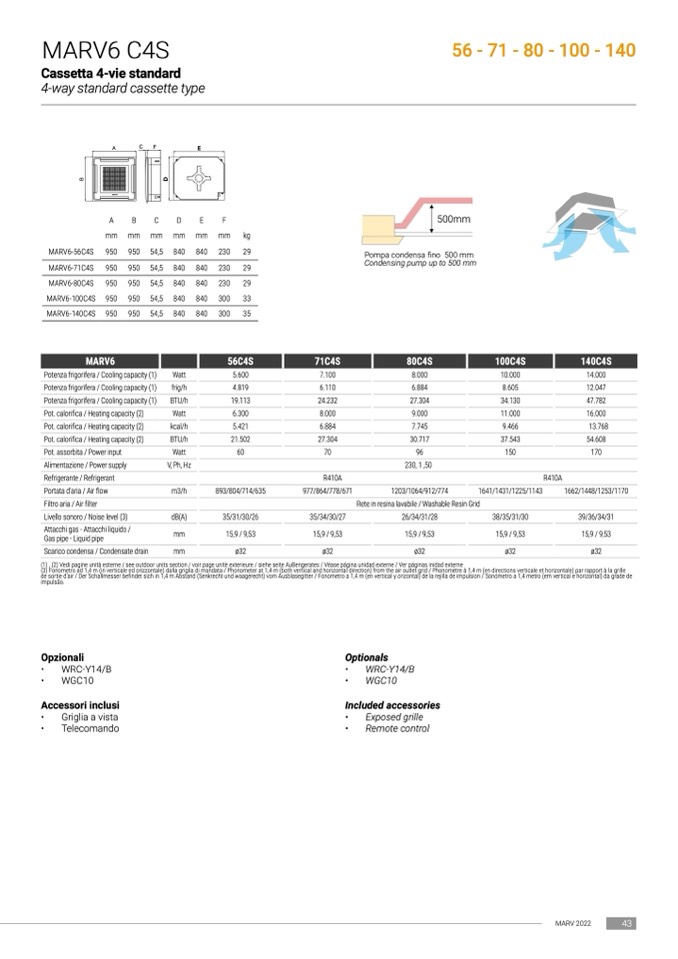

MARV6 C4S

Cassetta 4-vie standard

4-way standard cassette type

56 - 71 - 80 - 100 - 140

A

C

F

ED

D

A

B

C

D

E

F

500mm

MARV6-56C4S

MARV6-71C4S

MARV6-80C4S

MARV6-100C4S

MARV6-140C4S

mm mm mm mm

950 950 54,5 840

950 950 54,5 840

950 950 54,5 840

950 950 54,5 840

950 950 54,5 840

mm mm kg

840 230 29

840 230 29

840 230 29

840 300 33

840 300 35

Pompa condensa fino 500 mm

Condensing pump up to 500 mm

MARV6

56C4S

71C4S

80C4S

100C4S

140C4S

Watt

5.600

7.100

8.000

10.000

14.000

frig/h

4.819

6.110

6.884

8.605

12.047

BTU/h

19.113

24.232

27.304

34.130

47.782

Watt

6.300

8.000

9.000

11.000

16.000

kcal/h

5.421

6.884

7.745

9.466

13.768

BTU/h

21.502

27.304

30.717

37.543

54.608

Watt

60

70

96

150

170

V,Ph,Hz

R410A

230, 1 ,50

R410A

m3/h

893/804/714/635

977/864/778/671

1203/1064/912/774

1641/1431/1225/1143

1662/1448/1253/1170

Rete in resina lavabile / Washable Resin Grid

dB(A)

35/31/30/26

35/34/30/27

26/34/31/28

38/35/31/30

39/36/34/31

mm

15,9 / 9,53

15,9 / 9,53

15,9 / 9,53

15,9 / 9,53

15,9 / 9,53

mm

ø32

ø32

ø32

ø32

ø32

Potenza frigorifera / Cooling capacity (1)

Potenza frigorifera / Cooling capacity (1)

Potenza frigorifera / Cooling capacity (1)

Pot. calorifica / Heating capacity (2)

Pot. calorifica / Heating capacity (2)

Pot. calorifica / Heating capacity (2)

Pot. assorbita / Power input

Alimentazione / Power supply

Refrigerante / Refrigerant

Portata d’aria / Air flow

Filtro aria / Air filter

Livello sonoro / Noise level (3)

Attacchi gas - Attacchi liquido /

Gas pipe - Liquid pipe

Scarico condensa / Condensate drain

(1) , (2) Vedi pagine unità esterne / see outdoor units section / voir page unitè exterieure / siehe seite AuBengerates / Véase página unidad externe / Ver páginas inidad externe

(3) Fonometro ad 1,4 m (in verticale ed orizzontale) dalla griglia di mandata / Phonometer at 1,4 m (both vertical and horizontal direction) from the air outlet grid / Phonom

ètre à 1,4 m (en directions verticale et horizontale) par rapport à la grille

de sortie d’air / Der Schallmesser befindet sich in 1,4 m Abstand (Senkrecht und waagerecht) vom Ausblasegitter / Fonometro a 1,4 m (en vertical y orizontal) de la rejilla de impulsion / Sonómetro a 1,4 metro (em vertical e horizontal) da grade de

impulsão.

Opzionali

•

WRC-Y14/B

•

WGC10

Accessori inclusi

•

Griglia a vista

•

Telecomando

Optionals

•

WRC-Y14/B

•

WGC10

Included accessories

•

Exposed grille

•

Remote control

MARV 2022

43
