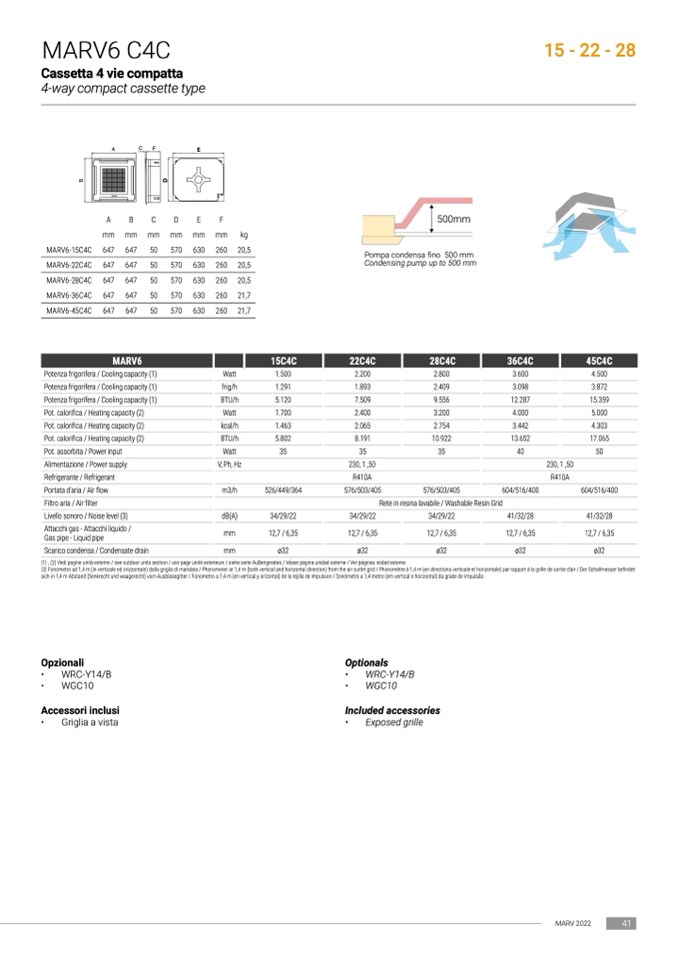

MARV6 C4C

Cassetta 4 vie compatta

4-way compact cassette type

15 - 22 - 28

A

C

F

ED

D

A

B

C

D

E

F

500mm

MARV6-15C4C

MARV6-22C4C

MARV6-28C4C

MARV6-36C4C

MARV6-45C4C

mm mm mm

647 647 50

647 647 50

647 647 50

647 647 50

647 647 50

mm mm

570 630

570 630

570 630

570 630

570 630

mm kg

260 20,5

260 20,5

260 20,5

260 21,7

260 21,7

Pompa condensa fino 500 mm

Condensing pump up to 500 mm

MARV6

15C4C

22C4C

28C4C

36C4C

45C4C

Watt

1.500

2.200

2.800

3.600

4.500

frig/h

1.291

1.893

2.409

3.098

3.872

BTU/h

5.120

7.509

9.556

12.287

15.359

Watt

1.700

2.400

3.200

4.000

5.000

kcal/h

1.463

2.065

2.754

3.442

4.303

BTU/h

5.802

8.191

10.922

13.652

17.065

Watt

35

35

35

40

50

V, Ph, Hz

230, 1 ,50

230, 1 ,50

R410A

R410A

m3/h

526/449/364

576/503/405

576/503/405

604/516/400

604/516/400

Rete in resina lavabile / Washable Resin Grid

dB(A)

34/29/22

34/29/22

34/29/22

41/32/28

41/32/28

mm

12,7 / 6,35

12,7 / 6,35

12,7 / 6,35

12,7 / 6,35

12,7 / 6,35

mm

ø32

ø32

ø32

ø32

ø32

Potenza frigorifera / Cooling capacity (1)

Potenza frigorifera / Cooling capacity (1)

Potenza frigorifera / Cooling capacity (1)

Pot. calorifica / Heating capacity (2)

Pot. calorifica / Heating capacity (2)

Pot. calorifica / Heating capacity (2)

Pot. assorbita / Power input

Alimentazione / Power supply

Refrigerante / Refrigerant

Portata d’aria / Air flow

Filtro aria / Air filter

Livello sonoro / Noise level (3)

Attacchi gas - Attacchi liquido /

Gas pipe - Liquid pipe

Scarico condensa / Condensate drain

(1) , (2) Vedi pagine unità esterne / see outdoor units section / voir page unitè exterieure / siehe seite AuBengerates / Véase página unidad externe / Ver páginas inidad externe

(3) Fonometro ad 1,4 m (in verticale ed orizzontale) dalla griglia di mandata / Phonometer at 1,4 m (both vertical and horizontal direction) from the air outlet grid / Phonomètre à 1,4 m (en directions verticale et horizontale) par rapport à la grille de sortie d’air / Der Schallmesser befindet

sich in 1,4 m Abstand (Senkrecht und waagerecht) vom Ausblasegitter / Fonometro a 1,4 m (en vertical y orizontal) de la rejilla de impulsion / Sonómetro a 1,4 metro (em vertical e horizontal) da grade de impulsão.

Opzionali

•

WRC-Y14/B

•

WGC10

Accessori inclusi

•

Griglia a vista

Optionals

•

WRC-Y14/B

•

WGC10

Included accessories

•

Exposed grille
