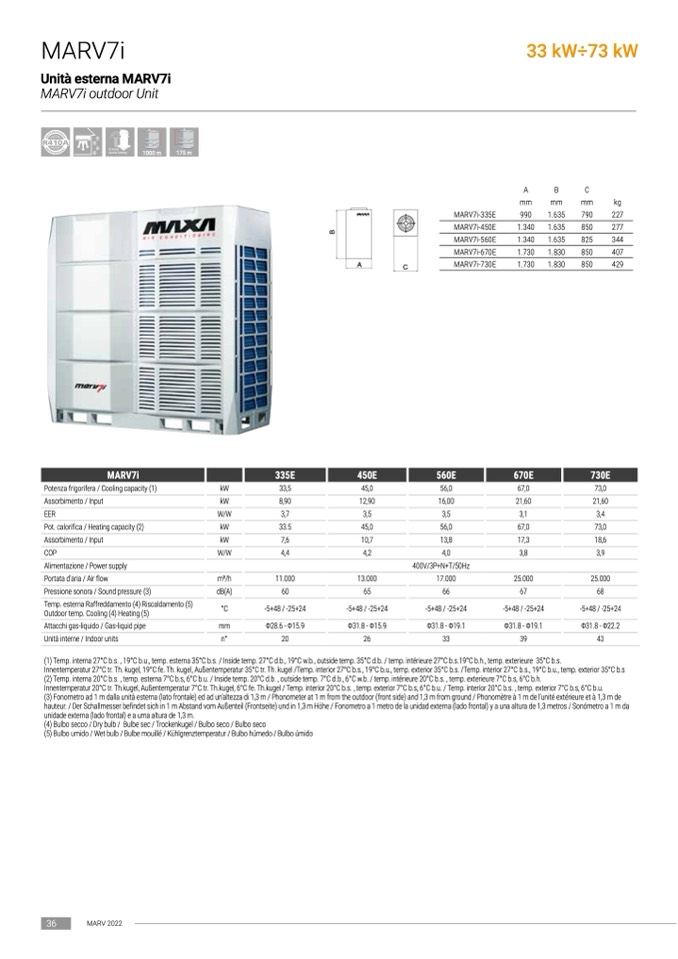

MARV7i

Unità esterna MARV7i

MARV7i outdoor Unit

33 kW÷73 kW

Potenza frigorifera / Cooling capacity (1)

Assorbimento / Input

EER

Pot. calorifica / Heating capacity (2)

Assorbimento / Input

COP

Alimentazione / Power supply

Portata d’aria / Air flow

Pressione sonora / Sound pressure (3)

110%

1000 m

175 m

MARV7i

335E

kW

33,5

kW

8,90

W/W

3,7

kW

33.5

kW

7,6

W/W

4,4

m3/h

11.000

dB(A)

60

°C

-5+48 / -25+24

mm

Φ28.6 - Φ15.9

n°

20

450E

45,0

12,90

3,5

45,0

10,7

4,2

13.000

65

-5+48 / -25+24

Φ31.8 - Φ15.9

26

560E

56,0

16,00

3,5

56,0

13,8

4,0

400V/3P+N+T/50Hz

17.000

66

-5+48 / -25+24

Φ31.8 - Φ19.1

33

670E

67,0

21,60

3,1

67,0

17,3

3,8

25.000

67

-5+48 / -25+24

Φ31.8 - Φ19.1

39

730E

73,0

21,60

3,4

73,0

18,6

3,9

25.000

68

-5+48 / -25+24

Φ31.8 - Φ22.2

43

Temp. esterna Raffreddamento (4) Riscaldamento (5)

Outdoor temp. Cooling (4) Heating (5)

Attacchi gas-liquido / Gas-liquid pipe

Unità interne / Indoor units

(1) Temp. interna 27°C b.s. , 19°C b.u., temp. esterna 35°C b.s. / Inside temp. 27°C d.b., 19°C w.b., outside temp. 35°C d.b. / temp. intérieure 27°C b.s.19°C b.h., temp. exterieure 35°C b.s.

Innentemperatur 27°C tr. Th. kugel, 19°C fe. Th. kugel, Außentemperatur 35°C tr. Th. kugel /Temp. interior 27°C b.s., 19°C b.u., temp. exterior 35°C b.s. /Temp. interior 27°C b.s., 19°C b.u., temp. exterior 35°C b.s

(2) Temp. interna 20°C b.s. , temp. esterna 7°C b.s, 6°C b.u. / Inside temp. 20°C d.b. , outside temp. 7°C d.b., 6°C w.b. / temp. intérieure 20°C b.s. , temp. exterieure 7°C b.s, 6°C b.h.

Innentemperatur 20°C tr. Th.kugel, Außentemperatur 7°C tr. Th.kugel, 6°C fe. Th.kugel / Temp. interior 20°C b.s. , temp. exterior 7°C b.s, 6°C b.u. / Temp. interior 20°C b.s. , temp. exterior 7°C b.s, 6°C b.u.

(3) Fonometro ad 1 m dalla unità esterna (lato frontale) ed ad un’altezza di 1,3 m / Phonometer at 1 m from the outdoor (front side) and 1,3 m from ground / Phonomètre à 1 m de l’unité extérieure et à 1,3 m de

hauteur. / Der Schallmesser befindet sich in 1 m Abstand vom Außenteil (Frontseite) und in 1,3 m Höhe / Fonometro a 1 metro de la unidad externa (lado frontal) y a una altura de 1,3 metros / Sonómetro a 1 m da

unidade externa (lado frontal) e a uma altura de 1,3 m.

(4)Bulbosecco/Drybulb/ Bulbesec/Trockenkugel/Bulboseco/Bulboseco

(5) Bulbo umido / Wet bulb / Bulbe mouillé / Kühlgrenztemperatur / Bulbo húmedo / Bulbo úmido

36

MARV 2022

A

C

AIR CONDITIONING

A

C

MARV7i-335E

MARV7i-450E

MARV7i-560E

MARV7i-670E

MARV7i-730E

990

1.340

1.340

1.730

1.730

1.635

1.635

1.635

1.830

1.830

A

B

C

mm

mm

mm

kg

790

227

850

277

825

344

850

407

850

429

B
