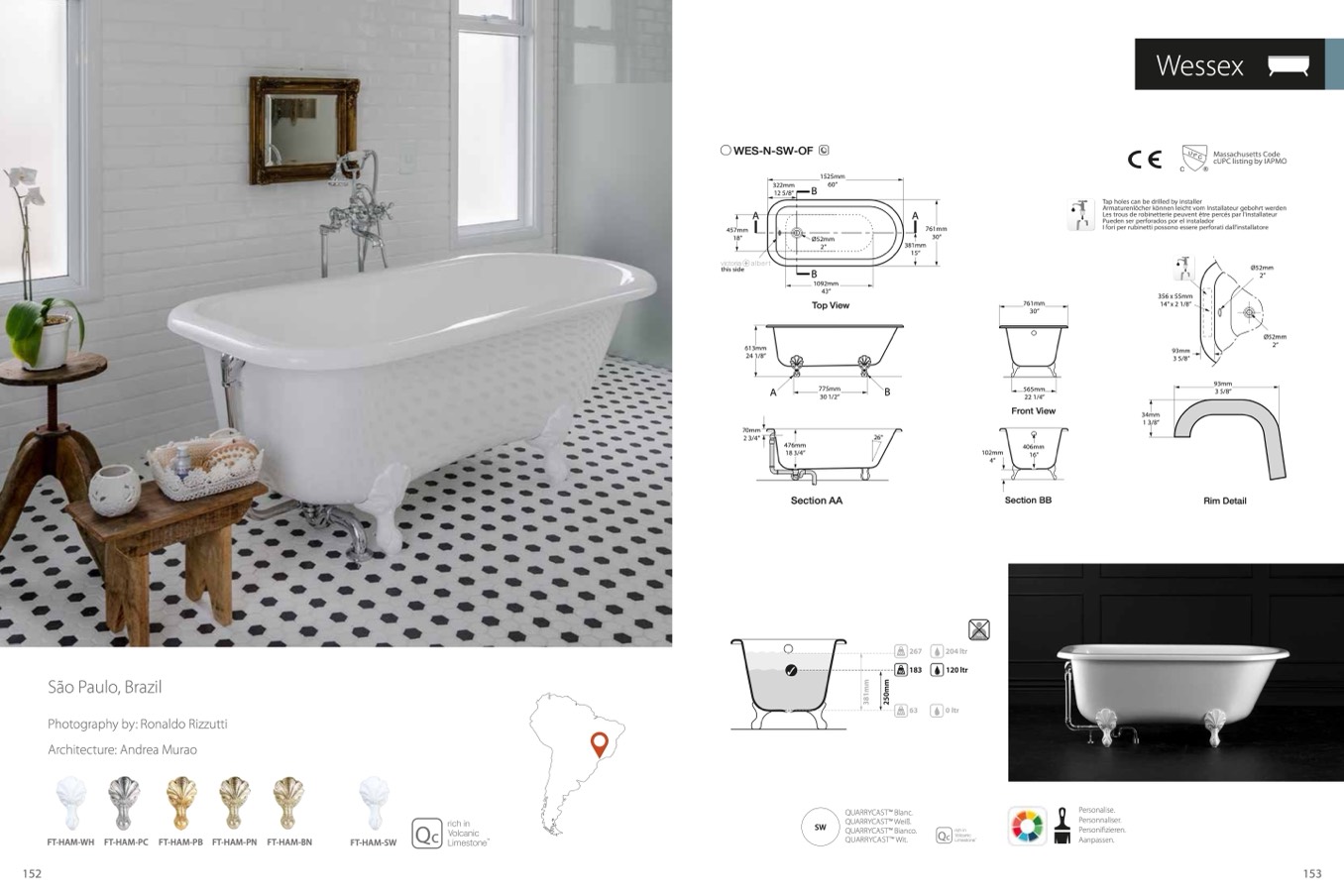

Wessex
WES-N-SW-OF
Massachusetts Code
cUPC listing by IAPMO
Tap holes can be drilled by installer
Armaturenlöcher können leicht vom Installateur gebohrt werden
Les trous de robinetterie peuvent être percés par l'installateur
Pueden ser perforados por el instalador
I fori per rubinetti possono essere perforati dall'installatore
A
this side
457mm
18”
Top View
356 x 55mm
14” x 2 1/8”
93mm
3 5/8”
A
B
70mm
2 3/4”
26°
Front View
102mm
4”
Section AA
Section BB
Rim Detail
São Paulo, Brazil
Photography by: Ronaldo Rizzutti
Architecture: Andrea Murao
SW
QUARRYCASTTM Blanc.
QUARRYCASTTM Weiß.
QUARRYCASTTM Bianco.
QUARRYCASTTM Wit.
Personalise.
Personnaliser.
Personifizieren.
Aanpassen.
FT-HAM-WH
FT-HAM-PC
FT-HAM-PB
FT-HAM-PN
FT-HAM-BN
FT-HAM-SW
152
153
1525mm
60”
322mm
12 5/8”
B
A
1092mm
43”
381mm
15”
761mm
30”
Ø52mm
2”
B
775mm
30 1/2”
761mm
30”
Ø52mm
2”
613mm
24 1/8”
Ø52mm
2”
93mm
3 5/8”
565mm
22 1/4”
406mm
16”
34mm
1 3/8”
476mm
18 3/4”
