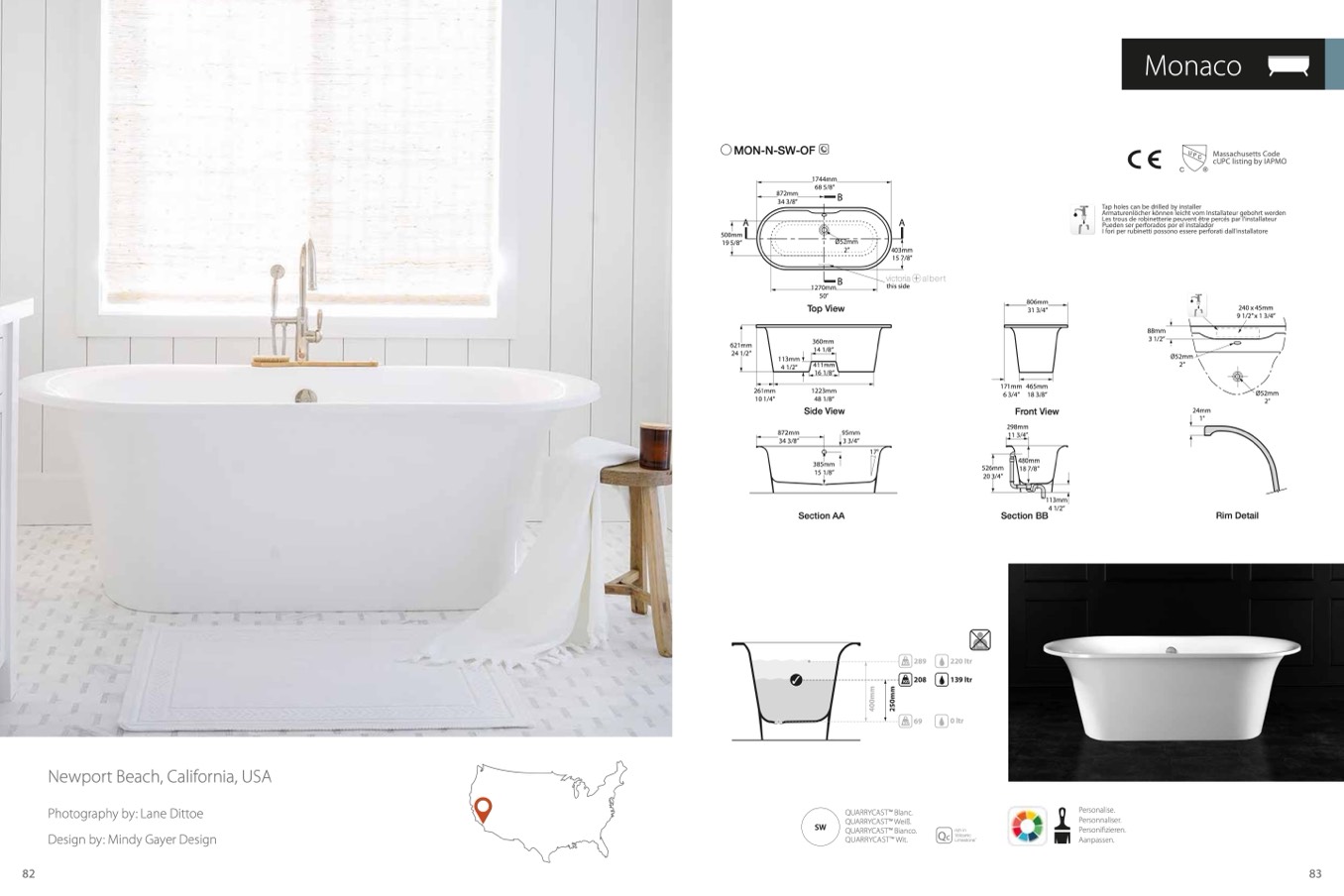

Monaco
MON-N-SW-OF
1744mm
68 5/8”
A
A
Massachusetts Code
cUPC listing by IAPMO
Tap holes can be drilled by installer
Armaturenlöcher können leicht vom Installateur gebohrt werden
Les trous de robinetterie peuvent être percés par l'installateur
Pueden ser perforados por el instalador
I fori per rubinetti possono essere perforati dall'installatore
872mm
34 3/8”
B
500mm
19 5/8”
Ø52mm
2”
403mm
15 7/8”
this side
1270mm
B
50”
806mm
31 3/4”
360mm
14 1/8”
621mm
24 1/2”
Top View
113mm
4 1/2”
872mm
34 3/8”
88mm
3 1/2”
240 x 45mm
9 1/2” x 1 3/4”
Ø52mm
2”
Rim Detail
261mm
10 1/4”
411mm
16 1/8”
1223mm
48 1/8”
Side View
171mm 465mm
6 3/4” 18 3/8”
Front View
Ø52mm
2”
24mm
1”
95mm
3 3/4”
298mm
11 3/4”
480mm
18 7/8”
17°
385mm
15 1/8”
526mm
20 3/4”
Section AA
Section BB
113mm
4 1/2”
Newport Beach, California, USA
Photography by: Lane Dittoe
Design by: Mindy Gayer Design
SW
QUARRYCASTTM Blanc.
QUARRYCASTTM Weiß.
QUARRYCASTTM Bianco.
QUARRYCASTTM Wit.
Personalise.
Personnaliser.
Personifizieren.
Aanpassen.
