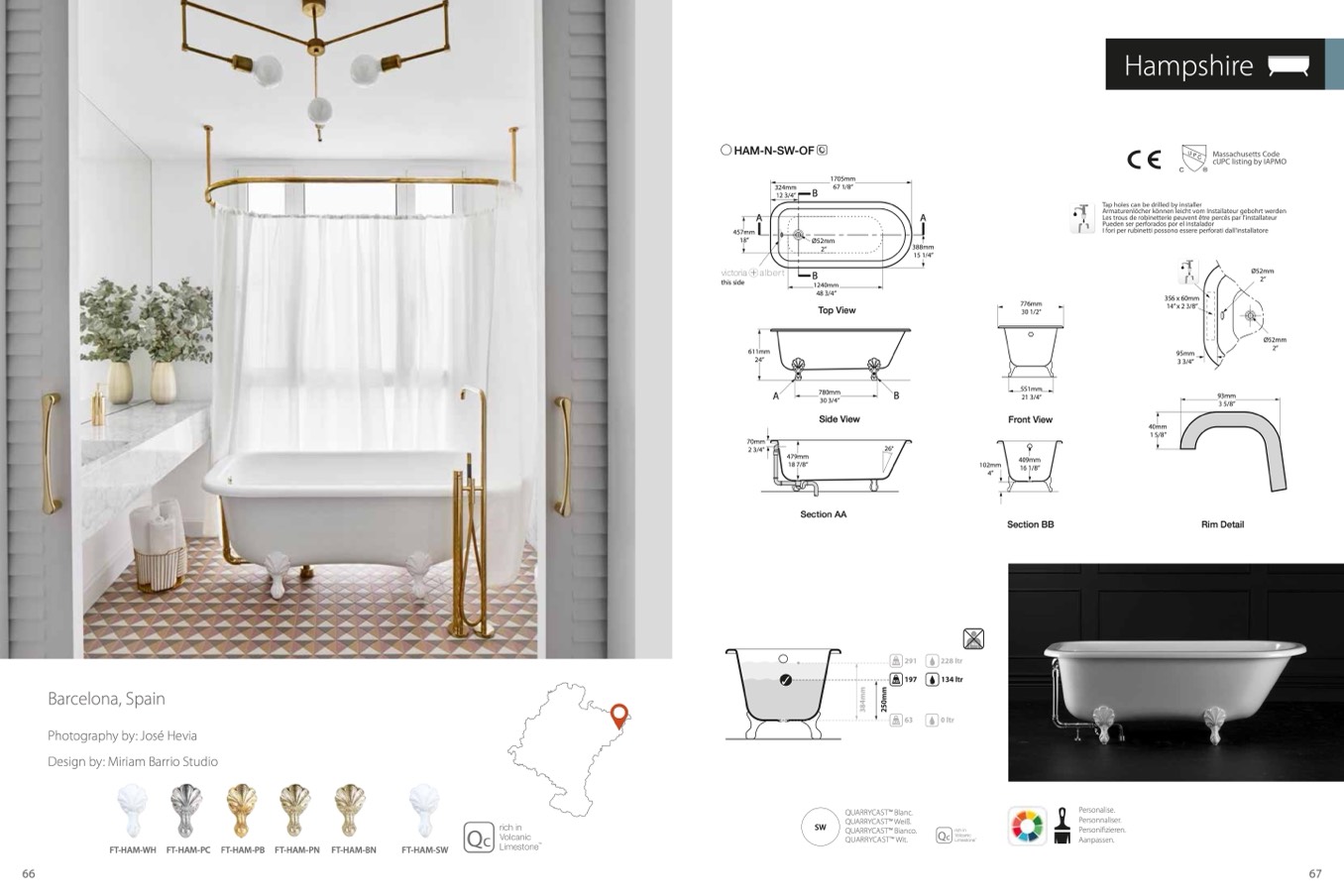

Hampshire
HAM-N-SW-OF
A
A
Massachusetts Code
cUPC listing by IAPMO
Tap holes can be drilled by installer
Armaturenlöcher können leicht vom Installateur gebohrt werden
Les trous de robinetterie peuvent être percés par l'installateur
Pueden ser perforados por el instalador
I fori per rubinetti possono essere perforati dall'installatore
356 x 60mm
14” x 2 3/8”
95mm
3 3/4”
324mm
12 3/4”
B
457mm
18”
Ø52mm
2”
388mm
15 1/4”
this side
611mm
24”
B
Top View
776mm
30 1/2”
Ø52mm
2”
1240mm
48 3/4”
Ø52mm
2”
780mm
30 3/4”
A
B
93mm
3 5/8”
551mm
21 3/4”
40mm
1 5/8”
70mm
2 3/4”
Side View
Section AA
26°
Front View
Section BB
479mm
18 7/8”
102mm
4”
409mm
16 1/8”
Rim Detail
Barcelona, Spain
Photography by: José Hevia
Design by: Miriam Barrio Studio
SW
QUARRYCASTTM Blanc.
QUARRYCASTTM Weiß.
QUARRYCASTTM Bianco.
QUARRYCASTTM Wit.
Personalise.
Personnaliser.
Personifizieren.
Aanpassen.
FT-HAM-WH
FT-HAM-PC
FT-HAM-PB
FT-HAM-PN
FT-HAM-BN
FT-HAM-SW
66
67
1705mm
67 1/8”
