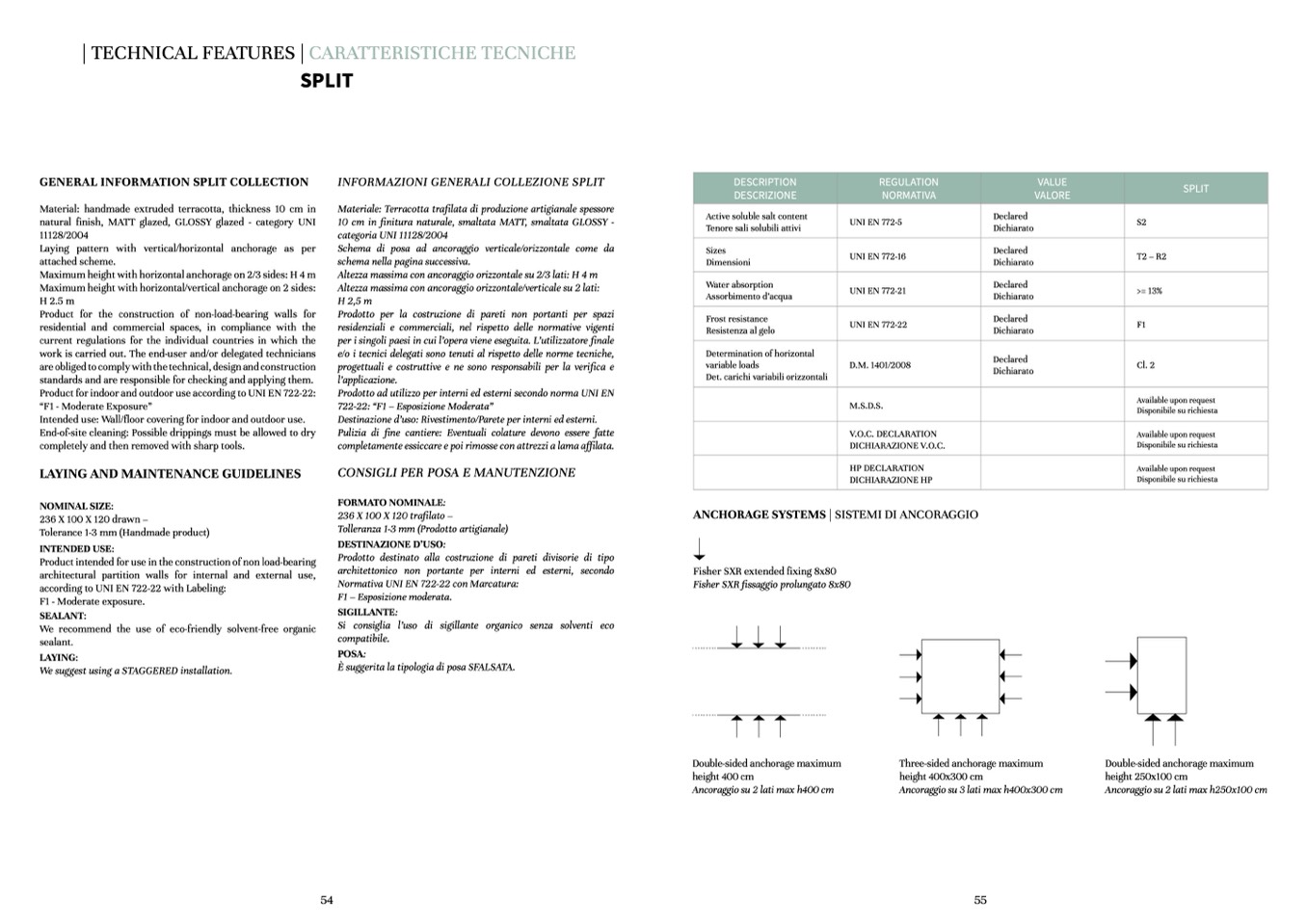

| TECHNICAL FEATURES | CARATTERISTICHE TECNICHE

SPLIT

DESCRIPTION

DESCRIZIONE

REGULATION

NORMATIVA

VALUE

VALORE

SPLIT

Active soluble salt content

Tenore sali solubili attivi

UNI EN 772-5

Declared

Dichiarato

S2

Sizes

Dimensioni

UNI EN 772-16

Declared

Dichiarato

T2 – R2

Water absorption

Assorbimento d’acqua

UNI EN 772-21

Declared

Dichiarato

>= 13%

Frost resistance

Resistenza al gelo

UNI EN 772-22

Declared

Dichiarato

F1

Determination of horizontal

variable loads

Det. carichi variabili orizzontali

D.M. 1401/2008

Declared

Dichiarato

Cl. 2

M.S.D.S.

Available upon request

Disponibile su richiesta

V.O.C. DECLARATION

DICHIARAZIONE V.O.C.

Available upon request

Disponibile su richiesta

HP DECLARATION

DICHIARAZIONE HP

Available upon request

Disponibile su richiesta

GENERAL INFORMATION SPLIT COLLECTION

Material: handmade extruded terracotta, thickness 10 cm in

natural finish, MATT glazed, GLOSSY glazed - category UNI

11128/2004

Laying pattern with vertical/horizontal anchorage as per

attached scheme.

Maximum height with horizontal anchorage on 2/3 sides: H 4 m

Maximum height with horizontal/vertical anchorage on 2 sides:

H 2.5 m

Product for the construction of non-load-bearing walls for

residential and commercial spaces, in compliance with the

current regulations for the individual countries in which the

work is carried out. The end-user and/or delegated technicians

are obliged to comply with the technical, design and construction

standards and are responsible for checking and applying them.

Product for indoor and outdoor use according to UNI EN 722-22:

“F1 - Moderate Exposure”

Intended use: Wall/floor covering for indoor and outdoor use.

End-of-site cleaning: Possible drippings must be allowed to dry

completely and then removed with sharp tools.

LAYING AND MAINTENANCE GUIDELINES

NOMINAL SIZE:

236 X 100 X 120 drawn –

Tolerance 1-3 mm (Handmade product)

INTENDED USE:

Product intended for use in the construction of non load-bearing

architectural partition walls for internal and external use,

according to UNI EN 722-22 with Labeling:

F1 - Moderate exposure.

SEALANT:

We recommend the use of eco-friendly solvent-free organic

sealant.

LAYING:

We suggest using a STAGGERED installation.

INFORMAZIONI GENERALI COLLEZIONE SPLIT

Materiale: Terracotta trafilata di produzione artigianale spessore

10 cm in finitura naturale, smaltata MATT, smaltata GLOSSY -

categoria UNI 11128/2004

Schema di posa ad ancoraggio verticale/orizzontale come da

schema nella pagina successiva.

Altezza massima con ancoraggio orizzontale su 2/3 lati: H 4 m

Altezza massima con ancoraggio orizzontale/verticale su 2 lati:

H 2,5 m

Prodotto per la costruzione di pareti non portanti per spazi

residenziali e commerciali, nel rispetto delle normative vigenti

per i singoli paesi in cui l’opera viene eseguita. L’utilizzatore finale

e/o i tecnici delegati sono tenuti al rispetto delle norme tecniche,

progettuali e costruttive e ne sono responsabili per la verifica e

l’applicazione.

Prodotto ad utilizzo per interni ed esterni secondo norma UNI EN

722-22: “F1 – Esposizione Moderata”

Destinazione d’uso: Rivestimento/Parete per interni ed esterni.

Pulizia di fine cantiere: Eventuali colature devono essere fatte

completamente essiccare e poi rimosse con attrezzi a lama affilata.

CONSIGLI PER POSA E MANUTENZIONE

FORMATO NOMINALE:

236 X 100 X 120 trafilato –

Tolleranza 1-3 mm (Prodotto artigianale)

DESTINAZIONE D’USO:

Prodotto destinato alla costruzione di pareti divisorie di tipo

architettonico non portante per interni ed esterni, secondo

Normativa UNI EN 722-22 con Marcatura:

F1 – Esposizione moderata.

SIGILLANTE:

Si consiglia l’uso di sigillante organico senza solventi eco

compatibile.

POSA:

È suggerita la tipologia di posa SFALSATA.

ANCHORAGE SYSTEMS | SISTEMI DI ANCORAGGIO

Fisher SXR extended fixing 8x80

Fisher SXR fissaggio prolungato 8x80

54

55

Double-sided anchorage maximum

height 400 cm

Ancoraggio su 2 lati max h400 cm

Three-sided anchorage maximum

height 400x300 cm

Ancoraggio su 3 lati max h400x300 cm

Double-sided anchorage maximum

height 250x100 cm

Ancoraggio su 2 lati max h250x100 cm
