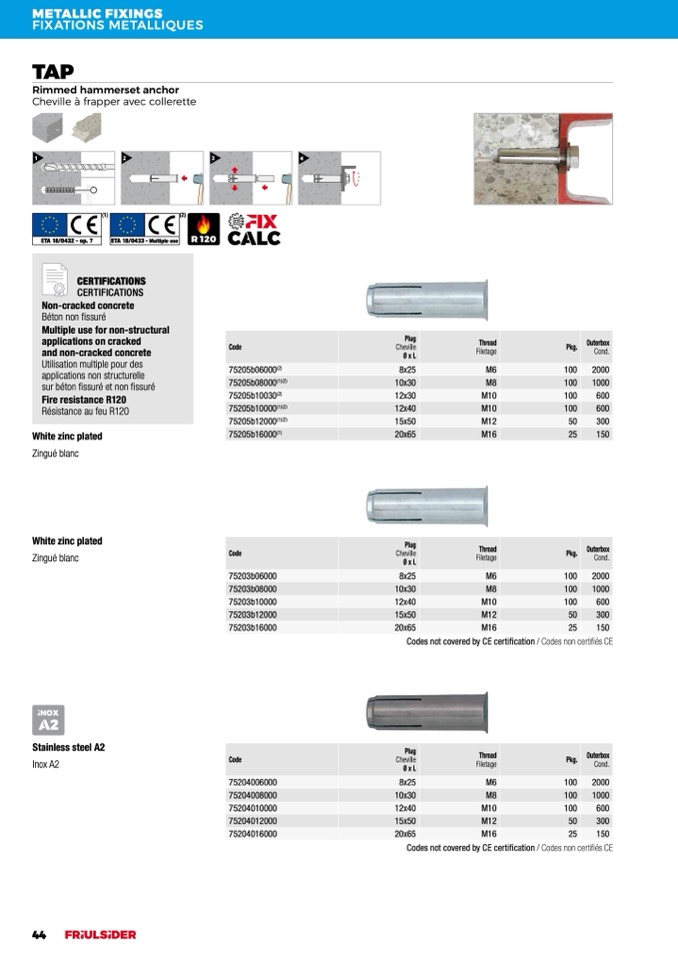

METALLIC FIXINGS

FIXATIONS METALLIQUES

TAP

Rimmed hammerset anchor

Cheville à frapper avec collerette

1

2

1

2

3

4

3

(1

)

4

(2)

ETA 18/0432 - op. 7

ETA 18/0433 - Multiple use

CERTIFICATIONS

CERTIFICATIONS

Non-cracked concrete

Béton non fissuré

Multiple use for non-structural

applications on cracked

and non-cracked concrete

Utilisation multiple pour des

applications non structurelle

sur béton fissuré et non fissuré

Fire resistance R120

Résistance au feu R120

White zinc plated

Zingué blanc

White zinc plated

Zingué blanc

Plug

Thread

Code

Cheville

Filetage

Øx L

75205b06000

(2)

8x25

M6

75205b08000

(1)(2)

10x30

M8

75205b10030

(2)

12x30

M10

75205b10000

(1)(2)

12x40

M10

75205b12000

(1)(2)

15x50

M12

75205b16000

(1)

20x65

M16

Plug

Thread

Code

Cheville

Filetage

Øx L

75203b06000

8x25

M6

75203b08000

10x30

M8

75203b10000

12x40

M10

75203b12000

15x50

M12

75203b16000

20x65

M16

Outerbox

Pkg.

Cond.

100

2000

100

1000

100

600

100

600

50

300

25

150

Outerbox

Pkg.

Cond.

100

2000

100

1000

100

600

50

300

Stainless steel A2

Inox A2

Plug

Thread

Code

Cheville

Filetage

Øx L

75204006000

8x25

M6

75204008000

10x30

M8

75204010000

12x40

M10

75204012000

15x50

M12

75204016000

20x65

M16

Outerbox

Pkg.

Cond.

100

2000

100

1000

100

600

50

300

44

25

150

Codes not covered by CE certification / Codes non certifiés CE

25

150

Codes not covered by CE certification / Codes non certifiés CE
