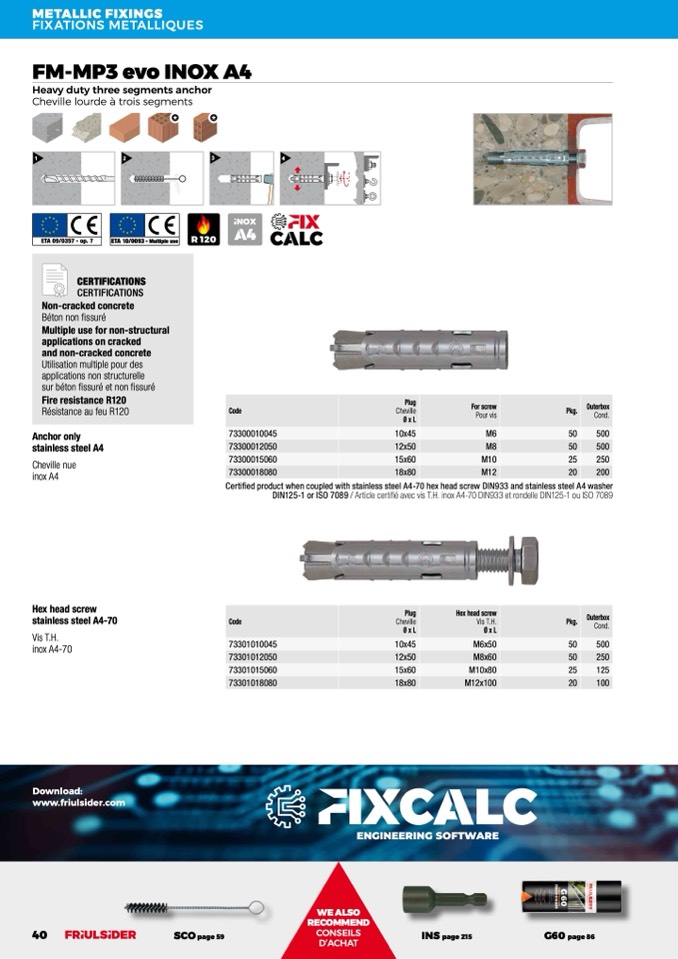

METALLIC FIXINGS

FIXATIONS METALLIQUES

FM-MP3 evo INOX A4

Heavy duty three segments anchor

Cheville lourde à trois segments

1

2

1

2

3

4

3

4

CERTIFICATIONS

CERTIFICATIONS

Non-cracked concrete

Béton non fissuré

Multiple use for non-structural

applications on cracked

and non-cracked concrete

Utilisation multiple pour des

applications non structurelle

sur béton fissuré et non fissuré

Fire resistance R120

Résistance au feu R120

Anchor only

stainless steel A4

Cheville nue

inox A4

Hex head screw

stainless steel A4-70

Vis T.H.

inox A4-70

Download:

www.friulsider.com

40

Plug

Code

Cheville

Øx L

For screw

Pour vis

M6

M8

M10

M12

Outerbox

Pkg.

Cond.

50

500

50

500

25

250

20

200

ETA 10/0093 - Multiple use

SCO

page 59

WE ALSO

RECOMMEND

CONSEILS

D’ACHAT

INS

page 215

G60

page 86

73300010045

73300012050

73300015060

73300018080

10x45

12x50

15x60

18x80

Certified product when coupled with stainless steel A4-70 hex head screw DIN933 and stainless steel A4 washer

DIN125-1 or ISO 7089 / Article certifié avec vis T.H. inox A4-70 DIN933 et rondelle DIN125-1 ou ISO 7089

Plug

Code

Cheville

Øx L

Hex head screw

Vis T.H.

Pkg.

Øx L

M6x50

50

M8x60

50

M10x80

25

M12x100

20

Outerbox

Cond.

500

250

125

100

73301010045

73301012050

73301015060

73301018080

10x45

12x50

15x60

18x80
