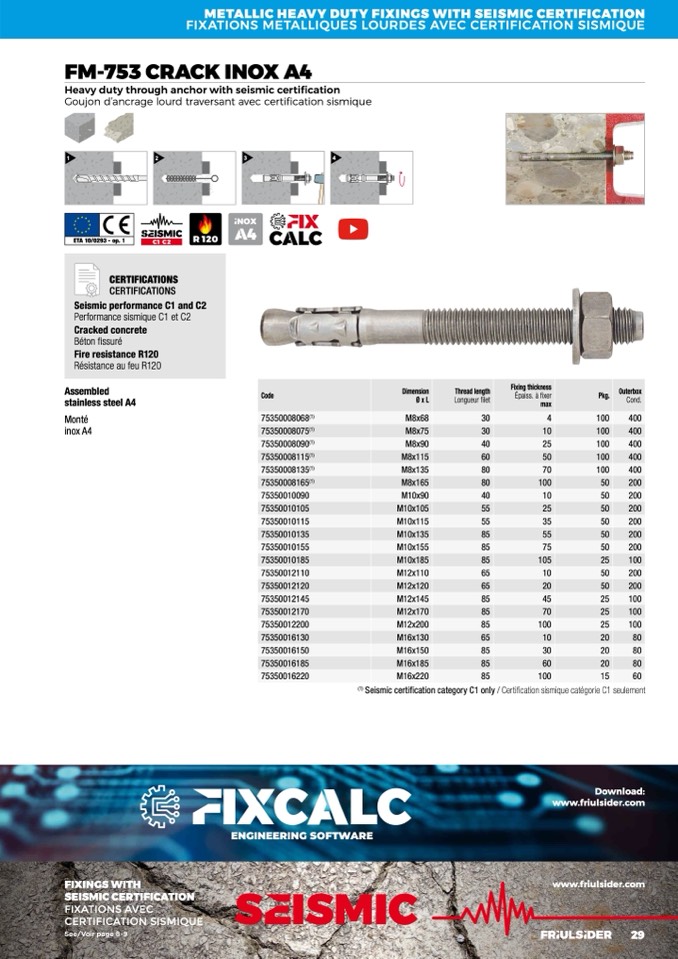

FM-753 CRACK INOX A4
Heavy duty through anchor with seismic certification
1
2
Goujon d’ancrage lourd traversant avec certification sismique
1
2
3
4
3
4
CERTIFICATIONS
CERTIFICATIONS
Seismic performance C1 and C2
Performance sismique C1 et C2
Cracked concrete
Béton fissuré
Fire resistance R120
Résistance au feu R120
Assembled
stainless steel A4
Monté
inox A4
Code
75350008068
(1)
75350008075
(1)
75350008090
(1)
75350008115
(1)
75350008135
(1)
75350008165
(1)
75350010090
75350010105
75350010115
75350010135
75350010155
75350010185
75350012110
75350012120
75350012145
75350012170
75350012200
75350016130
75350016150
75350016185
75350016220
Dimension
Ø x L
M8x68
M8x75
M8x90
M8x115
M8x135
M8x165
M10x90
M10x105
M10x115
M10x135
M10x155
M10x185
M12x110
M12x120
M12x145
M12x170
M12x200
M16x130
M16x150
M16x185
M16x220
Thread length
Longueur filet
30
30
40
60
80
80
40
55
55
85
85
85
65
65
85
85
85
65
85
85
85
Fixing thickness
Épaiss. à fixer
max
4
10
25
50
70
100
10
25
35
55
75
105
10
20
45
70
100
10
30
60
100
Outerbox
Pkg.
Cond.
100
400
100
400
100
400
100
400
100
400
50
200
50
200
50
200
50
200
50
200
50
200
25
100
50
200
50
200
25
100
25
100
25
100
20
80
20
80
20
80
15
60
FIXINGS WITH
SEISMIC CERTIFICATION
FIXATIONS AVEC
CERTIFICATION SISMIQUE
See/Voir page 8-9
(1)
Seismic certification category C1 only / Certification sismique catégorie C1 seulement
