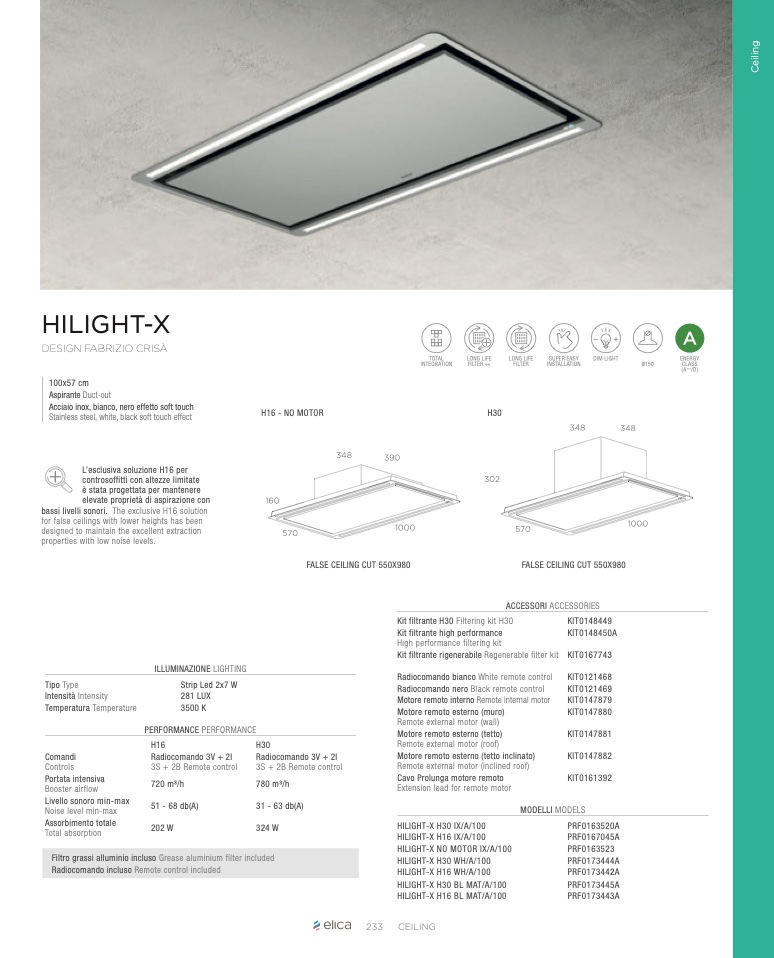

HILIGHT-X

DESIGN FABRIZIO CRISÀ

100x57 cm

Aspirante Duct-out

Acciaio inox, bianco, nero effetto soft touch

Stainless steel, white, black soft touch effect

TOTAL

INTEGRATION

LONG LIFE

FILTER ++

H30

302

Kit filtrante H30 Filtering kit H30

Kit filtrante high performance

High performance filtering kit

Kit filtrante rigenerabile Regenerable filter kit

Radiocomando bianco White remote control

Radiocomando nero Black remote control

Motore remoto interno Remote internal motor

Motore remoto esterno (muro)

Remote external motor (wall)

Motore remoto esterno (tetto)

Remote external motor (roof)

Motore remoto esterno (tetto inclinato)

Remote external motor (inclined roof)

Cavo Prolunga motore remoto

Extension lead for remote motor

HILIGHT-X H30 IX/A/100

HILIGHT-X H16 IX/A/100

HILIGHT-X NO MOTOR IX/A/100

HILIGHT-X H30 WH/A/100

HILIGHT-X H16 WH/A/100

HILIGHT-X H30 BL MAT/A/100

HILIGHT-X H16 BL MAT/A/100

LONG LIFE

FILTER

SUPER EASY

INSTALLATION

348

DIM LIGHT

Ø150

ENERGY

CLASS

(A

+++

/D)

H16 - NO MOTOR

348

348

390

1000

L’esclusiva soluzione H16 per

controsoffitti con altezze limitate

è stata progettata per mantenere

elevate proprietà di aspirazione con

160

bassi livelli sonori. The exclusive H16 solution

for false ceilings with lower heights has been

designed to maintain the excellent extraction

properties with low noise levels.

570

570

1000

FALSE CEILING CUT: 550X980

FALSE CEILING CUT: 550X980

FALSE CEILING CUT 550X980

FALSE CEILING CUT 550X980

ACCESSORI ACCESSORIES

Tipo Type

Intensità Intensity

Temperatura Temperature

Comandi

Controls

Portata intensiva

Booster airflow

Livello sonoro min-max

Noise level min-max

Assorbimento totale

Total absorption

ILLUMINAZIONE LIGHTING

Strip Led 2x7 W

281 LUX

3500 K

PERFORMANCE PERFORMANCE

KIT0148449

KIT0148450A

KIT0167743

KIT0121468

KIT0121469

KIT0147879

KIT0147880

KIT0147881

KIT0147882

KIT0161392

H16

Radiocomando 3V + 2I

3S + 2B Remote control

720 m3/h

51 - 68 db(A)

202 W

H30

Radiocomando 3V + 2I

3S + 2B Remote control

780 m3/h

31 - 63 db(A)

324 W

MODELLI MODELS

PRF0163520A

PRF0167045A

PRF0163523

PRF0173444A

PRF0173442A

PRF0173445A

PRF0173443A

Filtro grassi alluminio incluso Grease aluminium filter included

Radiocomando incluso Remote control included

233

CEILING

C

e

i

l

i

n

g
