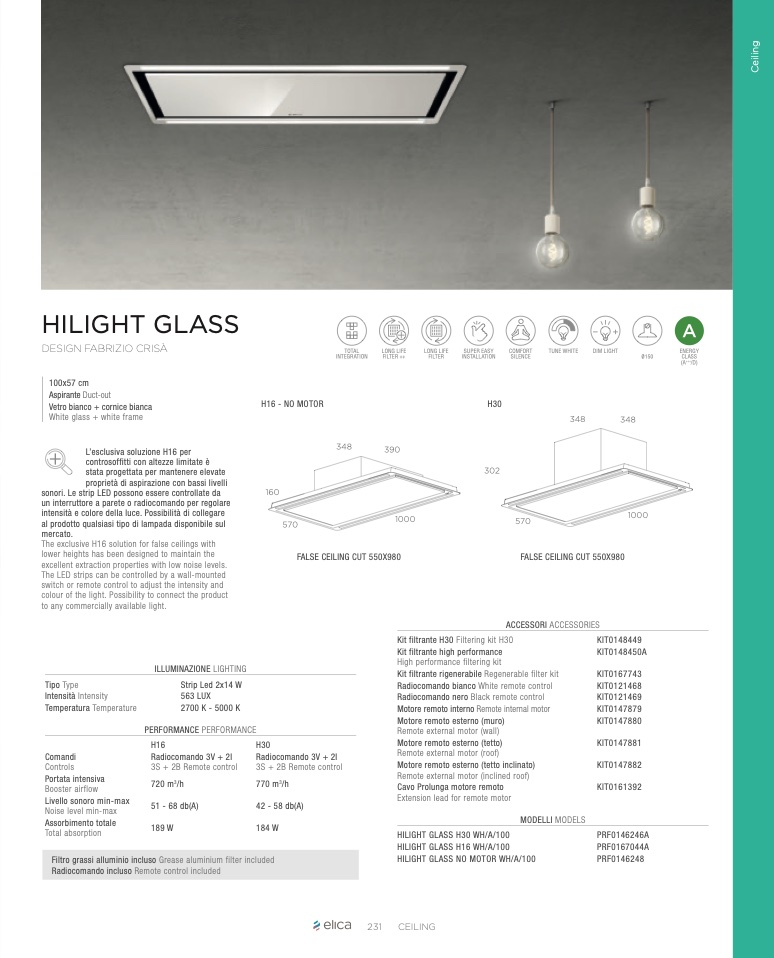

HILIGHT GLASS

DESIGN FABRIZIO CRISÀ

100x57 cm

Aspirante Duct-out

Vetro bianco + cornice bianca

White glass + white frame

L’esclusiva soluzione H16 per

controsoffitti con altezze limitate è

stata progettata per mantenere elevate

proprietà di aspirazione con bassi livelli

sonori. Le strip LED possono essere controllate da

un interruttore a parete o radiocomando per regolare

intensità e colore della luce. Possibilità di collegare

al prodotto qualsiasi tipo di lampada disponibile sul

mercato.

The exclusive H16 solution for false ceilings with

lower heights has been designed to maintain the

excellent extraction properties with low noise levels.

The LED strips can be controlled by a wall-mounted

switch or remote control to adjust the intensity and

colour of the light. Possibility to connect the product

to any commercially available light.

TOTAL

INTEGRATION

348

LONG LIFE

FILTER ++

390

1000

LONG LIFE

FILTER

SUPER EASY

INSTALLATION

H30

302

570

H16 - NO MOTOR

160

570

348

COMFORT

SILENCE

TUNE WHITE

348

DIM LIGHT

Ø150

ENERGY

CLASS

(A

+++

/D)

FALSE CEILING CUT: 550X980

1000

FALSE CEILING CUT: 550X980

FALSE CEILING CUT 550X980

FALSE CEILING CUT 550X980

ACCESSORI ACCESSORIES

Tipo Type

Intensità Intensity

Temperatura Temperature

Comandi

Controls

Portata intensiva

Booster airflow

Livello sonoro min-max

Noise level min-max

Assorbimento totale

Total absorption

ILLUMINAZIONE LIGHTING

Strip Led 2x14 W

563 LUX

2700 K - 5000 K

PERFORMANCE PERFORMANCE

Kit filtrante H30 Filtering kit H30

Kit filtrante high performance

High performance filtering kit

Kit filtrante rigenerabile Regenerable filter kit

Radiocomando bianco White remote control

Radiocomando nero Black remote control

Motore remoto interno Remote internal motor

Motore remoto esterno (muro)

Remote external motor (wall)

Motore remoto esterno (tetto)

Remote external motor (roof)

Motore remoto esterno (tetto inclinato)

Remote external motor (inclined roof)

Cavo Prolunga motore remoto

Extension lead for remote motor

KIT0148449

KIT0148450A

KIT0167743

KIT0121468

KIT0121469

KIT0147879

KIT0147880

KIT0147881

KIT0147882

KIT0161392

PRF0146246A

PRF0167044A

PRF0146248

H16

Radiocomando 3V + 2I

3S + 2B Remote control

720 m

3

/h

51 - 68 db(A)

189 W

H30

Radiocomando 3V + 2I

3S + 2B Remote control

770 m

3

/h

42 - 58 db(A)

184 W

MODELLI MODELS

HILIGHT GLASS NO MOTOR WH/A/100

HILIGHT GLASS H30 WH/A/100

HILIGHT GLASS H16 WH/A/100

Filtro grassi alluminio incluso Grease aluminium filter included

Radiocomando incluso Remote control included

231
