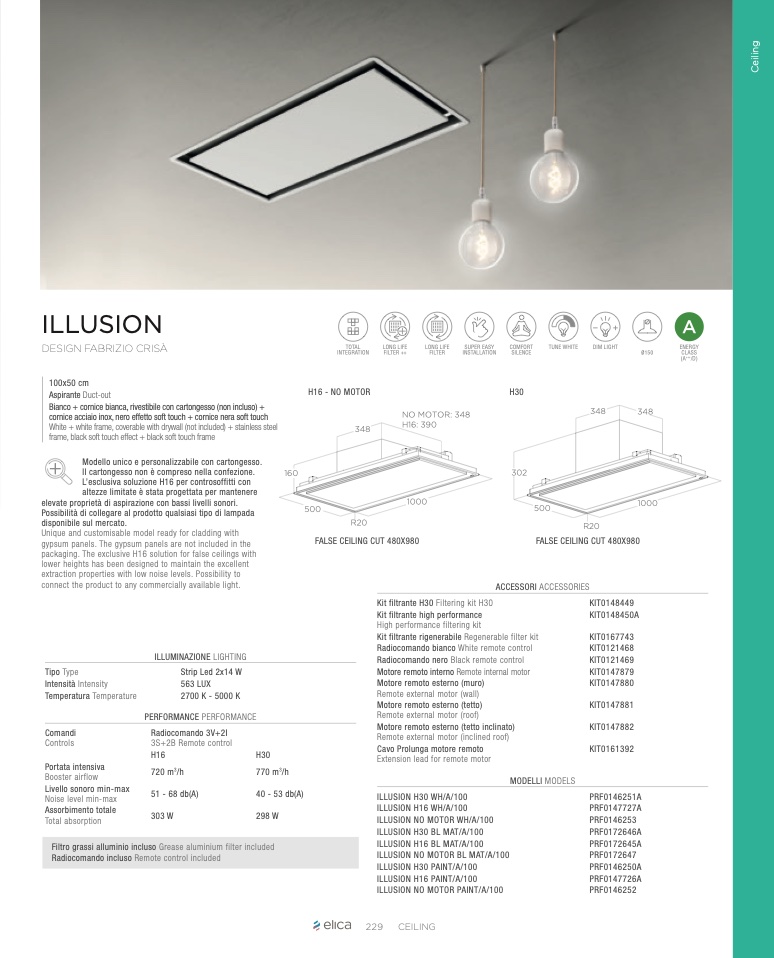

ILLUSION
DESIGN FABRIZIO CRISÀ
100x50 cm
Aspirante Duct-out
Bianco + cornice bianca, rivestibile con cartongesso (non incluso) +
cornice acciaio inox, nero effetto soft touch + cornice nera soft touch
White + white frame, coverable with drywall (not included) + stainless steel
frame, black soft touch effect + black soft touch frame
Modello unico e personalizzabile con cartongesso.
Il cartongesso non è compreso nella confezione.
L’esclusiva soluzione H16 per controsoffitti con
altezze limitate è stata progettata per mantenere
elevate proprietà di aspirazione con bassi livelli sonori.
Possibilità di collegare al prodotto qualsiasi tipo di lampada
disponibile sul mercato.
Unique and customisable model ready for cladding with
gypsum panels. The gypsum panels are not included in the
packaging. The exclusive H16 solution for false ceilings with
lower heights has been designed to maintain the excellent
extraction properties with low noise levels. Possibility to
connect the product to any commercially available light.
TOTAL
INTEGRATION
H16 - NO MOTOR
348
500
R20
LONG LIFE
FILTER ++
LONG LIFE
FILTER
SUPER EASY
INSTALLATION
COMFORT
SILENCE
H30
302
TUNE WHITE
DIM LIGHT
Ø150
ENERGY
CLASS
(A
+++
/D)
160
NO MOTOR: 348
H16: 390
1000
348
348
1000
R20
FALSE CEILING CUT 480X980
FALSE CEIFLIANLGSCEUTCE48IL0IXN9G80CUT: 480X980
Kit filtrante H30 Filtering kit H30
Kit filtrante high performance
High performance filtering kit
Kit filtrante rigenerabile Regenerable filter kit
Radiocomando bianco White remote control
Radiocomando nero Black remote control
Motore remoto interno Remote internal motor
Motore remoto esterno (muro)
Remote external motor (wall)
Motore remoto esterno (tetto)
Remote external motor (roof)
Motore remoto esterno (tetto inclinato)
FALSE CEILING CUT: 480X980
500
ACCESSORI ACCESSORIES
KIT0148449
Tipo Type
Intensità Intensity
Temperatura Temperature
Comandi
Controls
Portata intensiva
Booster airflow
Livello sonoro min-max
Noise level min-max
Assorbimento totale
Total absorption
ILLUMINAZIONE LIGHTING
Strip Led 2x14 W
563 LUX
2700 K - 5000 K
PERFORMANCE PERFORMANCE
Radiocomando 3V+2I
3S+2B Remote control
H16
720 m
3
/h
51 - 68 db(A)
303 W
Remote external motor (inclined roof)
Cavo Prolunga motore remoto
Extension lead for remote motor
ILLUSION H30 WH/A/100
ILLUSION H16 WH/A/100
ILLUSION NO MOTOR WH/A/100
ILLUSION H30 BL MAT/A/100
ILLUSION H16 BL MAT/A/100
ILLUSION NO MOTOR BL MAT/A/100
ILLUSION H30 PAINT/A/100
ILLUSION H16 PAINT/A/100
ILLUSION NO MOTOR PAINT/A/100
KIT0148450A
KIT0167743
KIT0121468
KIT0121469
KIT0147879
KIT0147880
KIT0147881
KIT0147882
KIT0161392
PRF0146251A
PRF0147727A
PRF0146253
PRF0172646A
PRF0172645A
PRF0172647
PRF0146250A
PRF0147726A
PRF0146252
H30
770 m
3
/h
40 - 53 db(A)
298 W
MODELLI MODELS
Filtro grassi alluminio incluso Grease aluminium filter included
Radiocomando incluso Remote control included
229
CEILING
C
e
i
l
i
n
g
